Driver Vent EK Civic

Driver Vent EK Civic

SKU:EKDVF1HEX - CF

Regular price $48.00 USD
Regular price Sale price $48.00 USD
Sale Sold out
Shipping calculated at checkout.

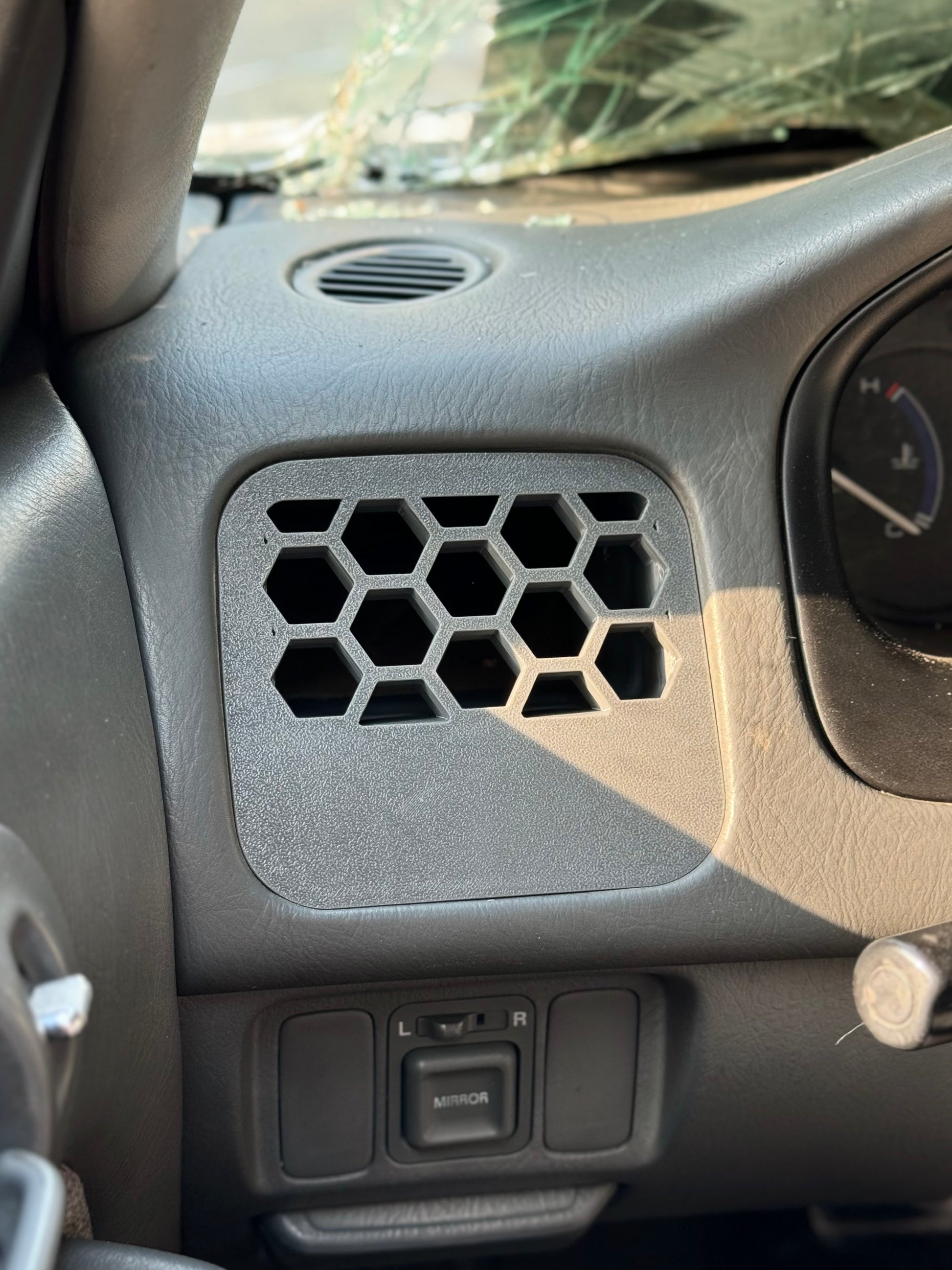

Replaces the factory DRIVERS vent

LHD AND RHD FITMENT

1996, 1997, 1998, 1999, and 2000 Honda Civic

-

Made from ABS Plastic

Vented options include an optional dimmer and cruise button relocation mount

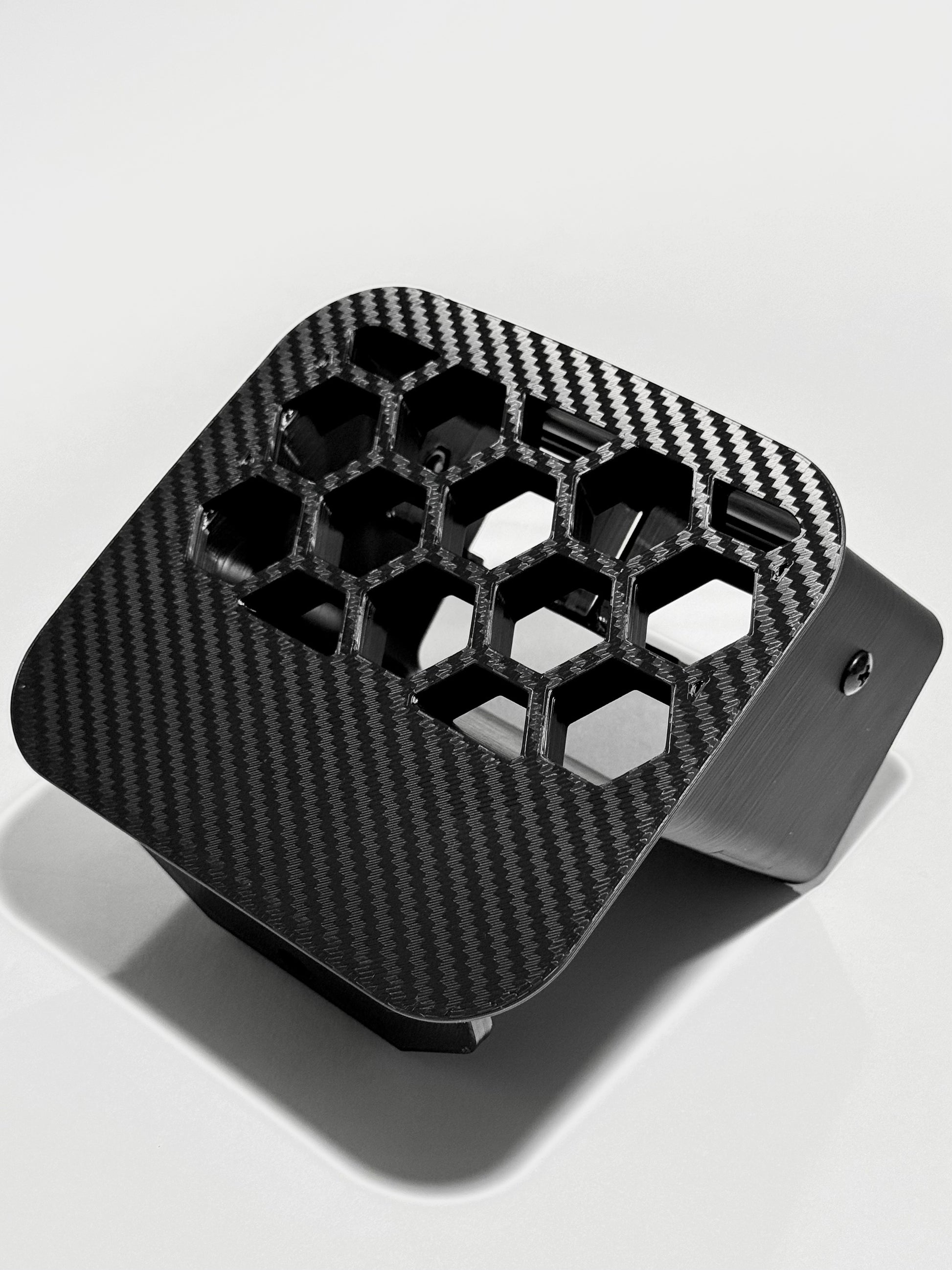

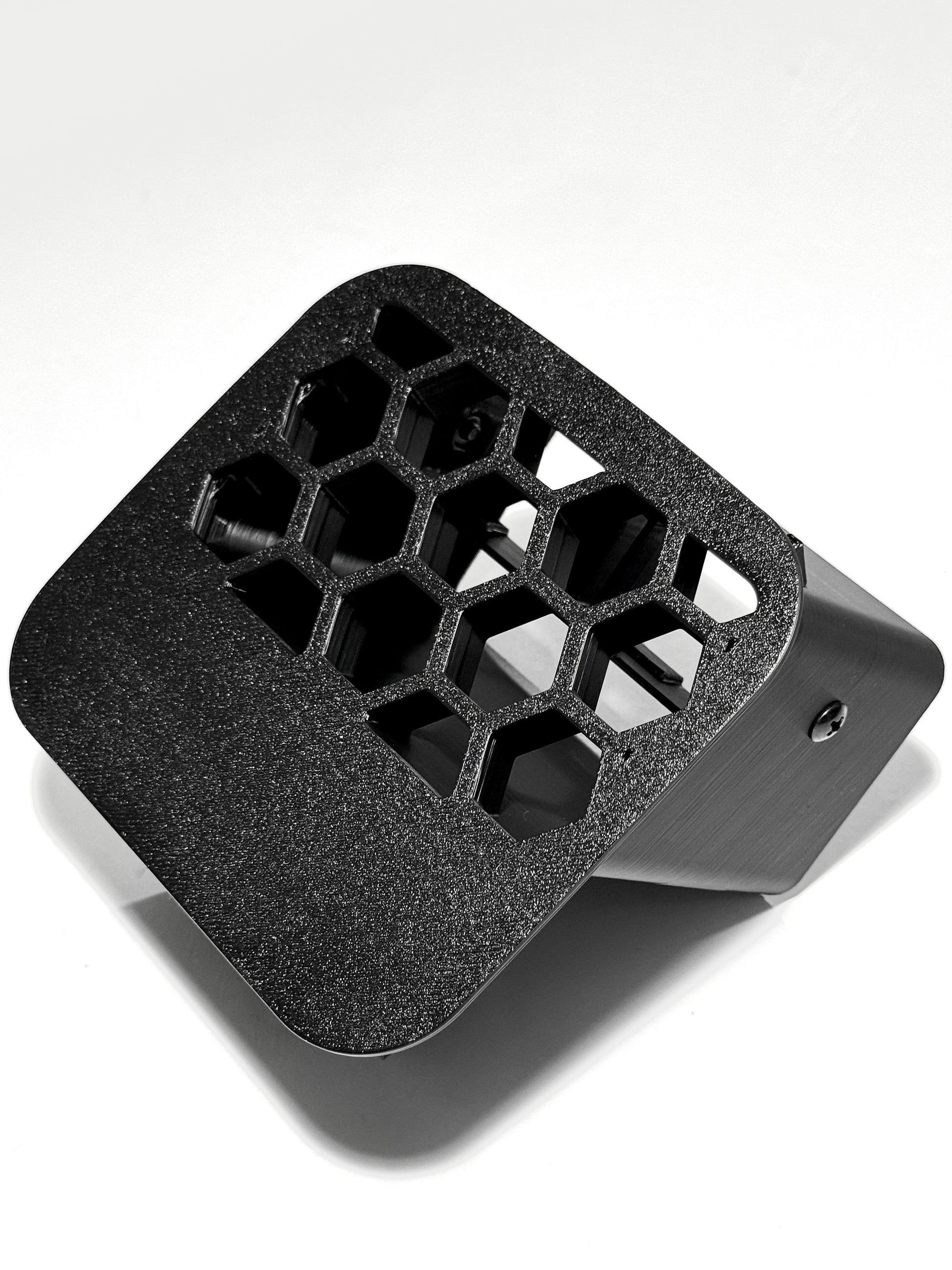

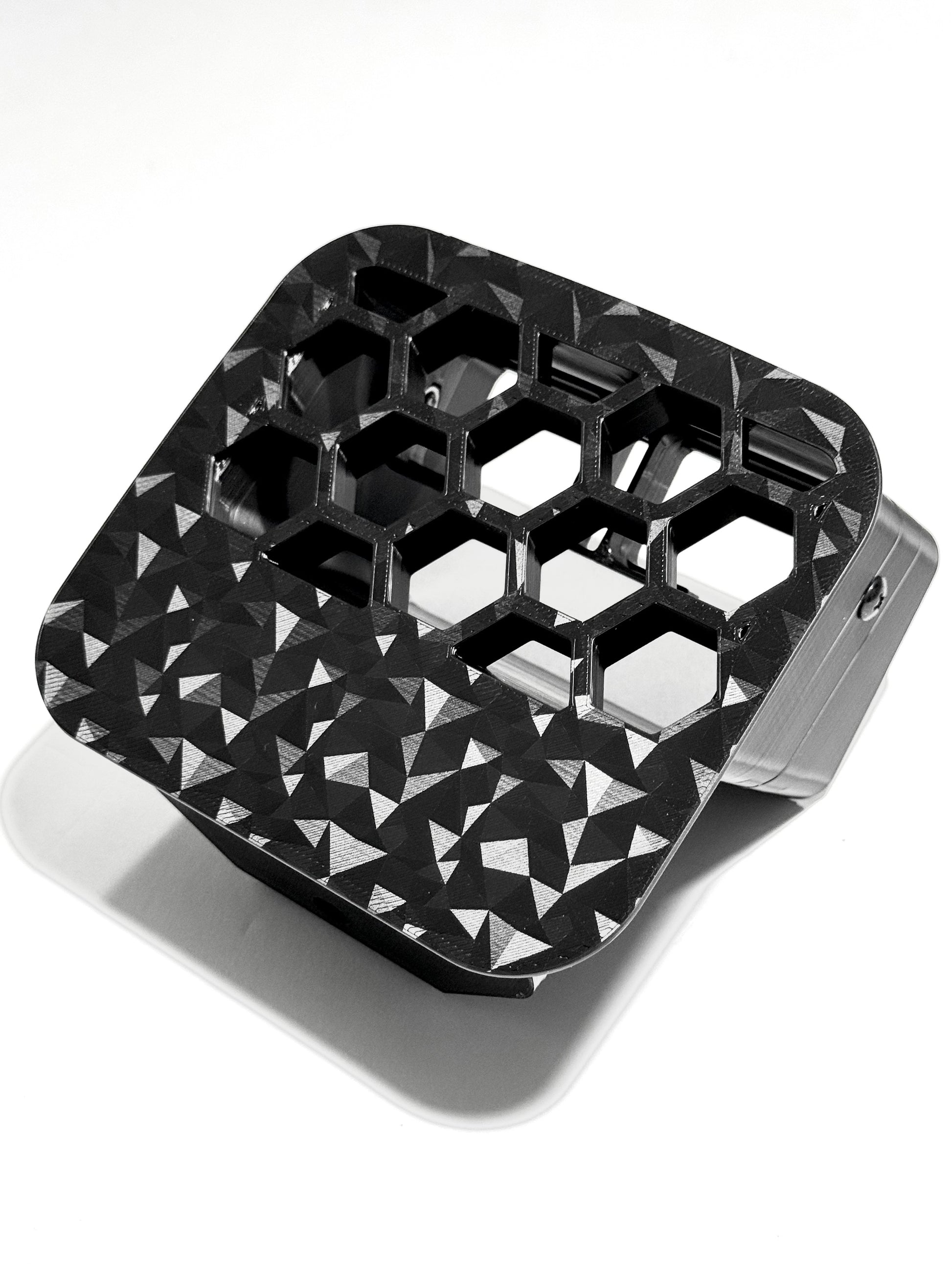

Honeycomb pattern fits HSW clips and attachments

Gauge hole - 52mm or 2 and 1/16th in

Curved shape matches the dash

-

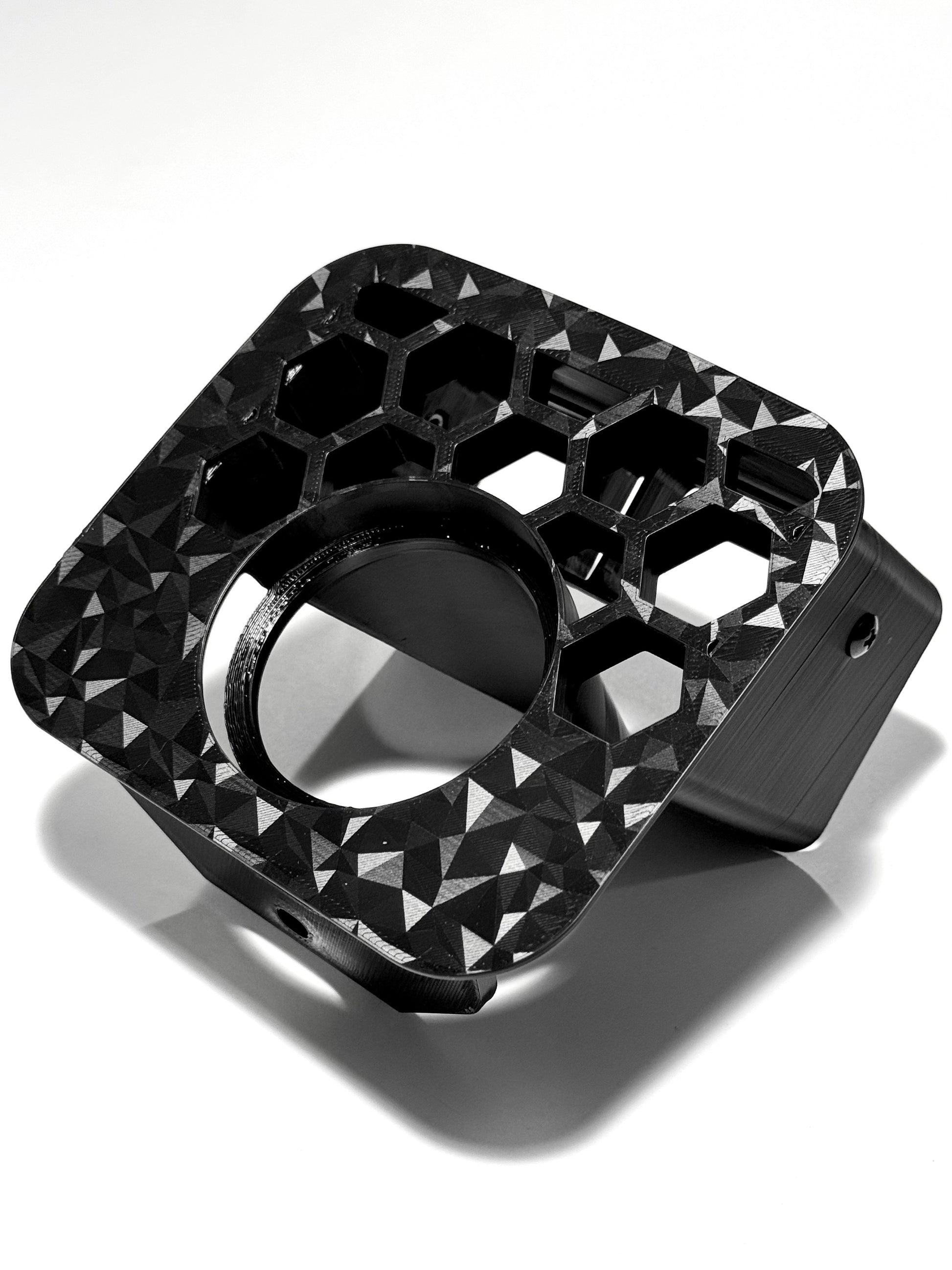

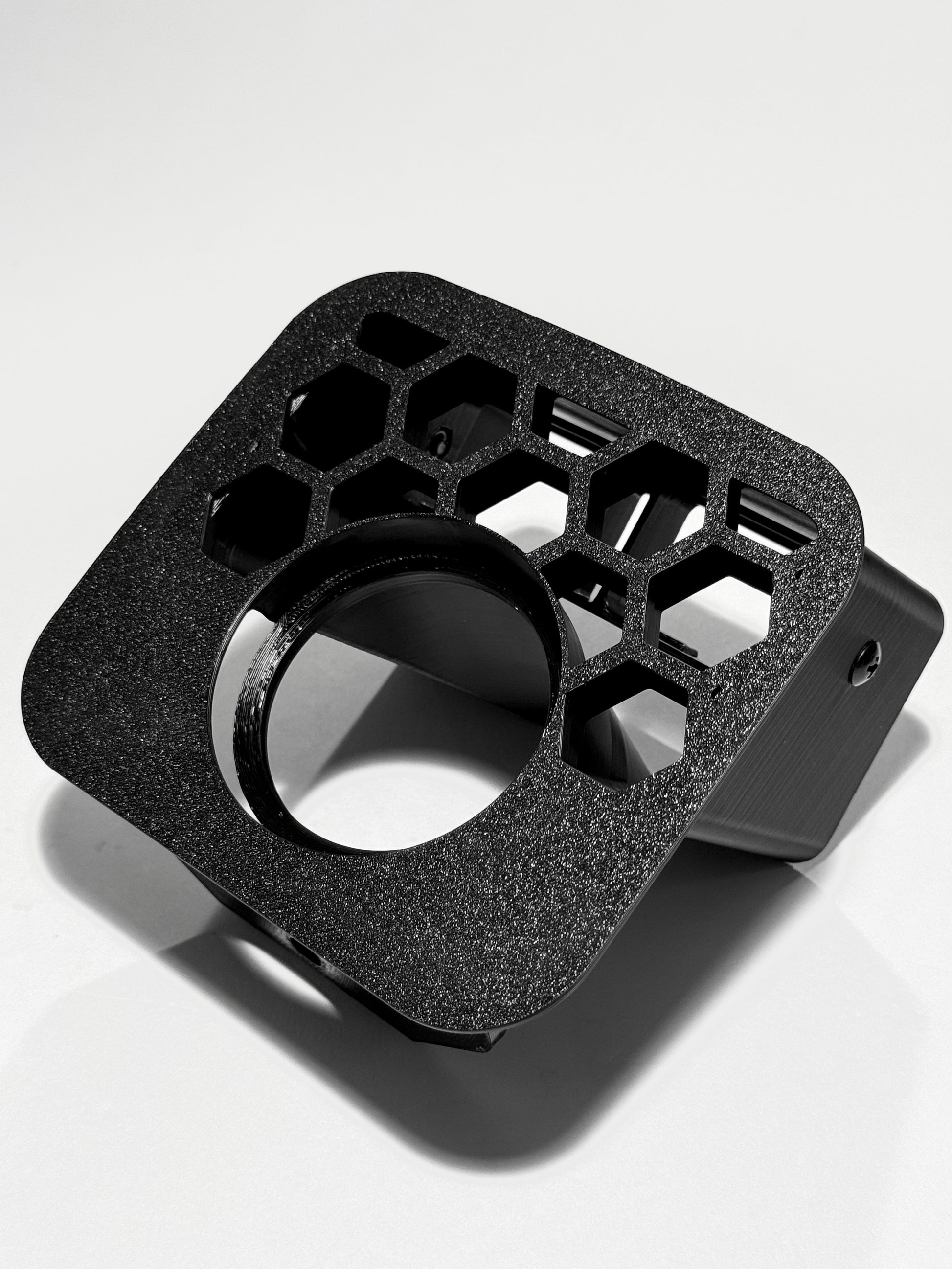

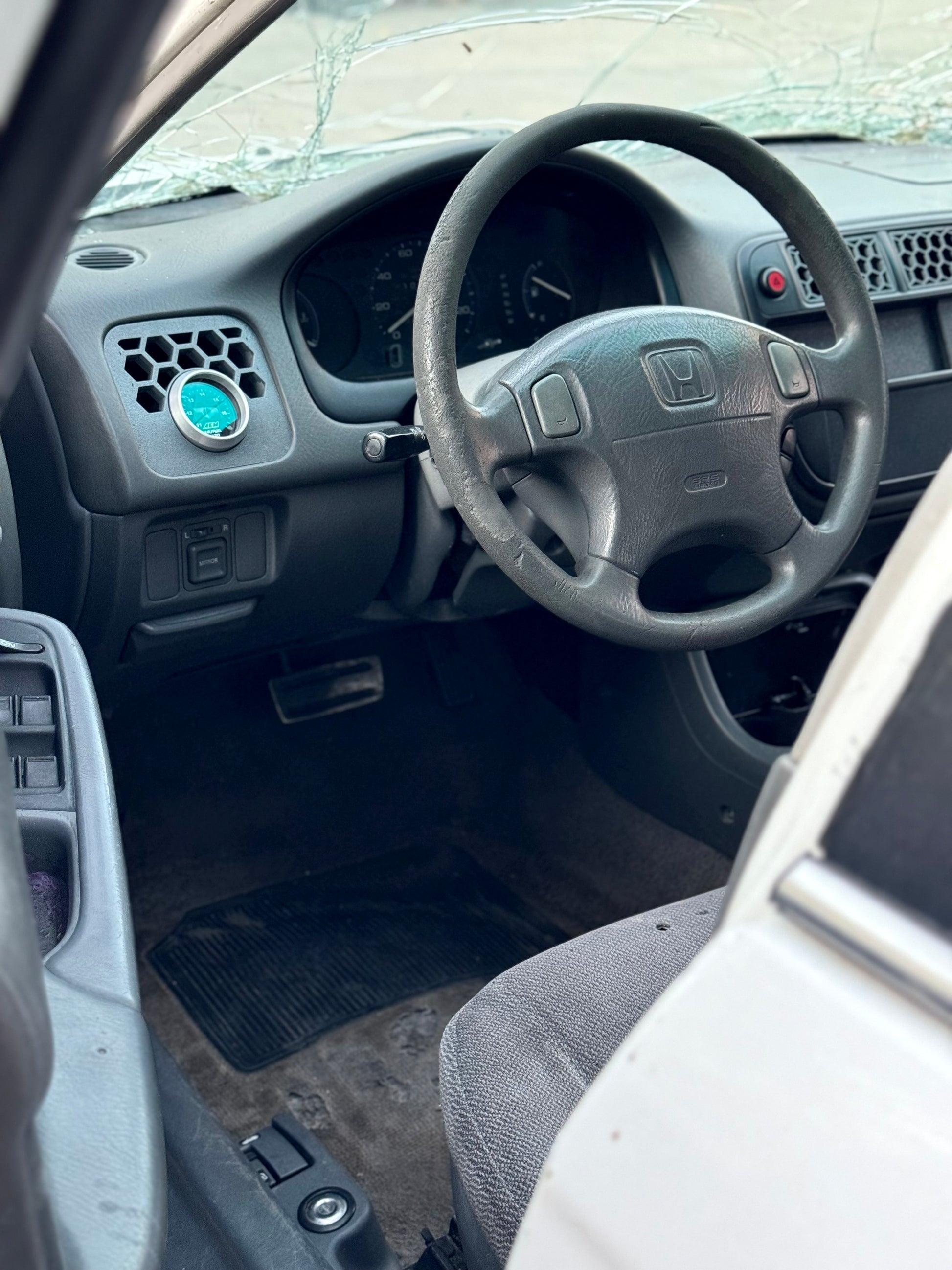

- GAUGE + VENT -

Fits one 52mm gauge (10mm recessed)

Includes cruise/dimmer relocation mount

-

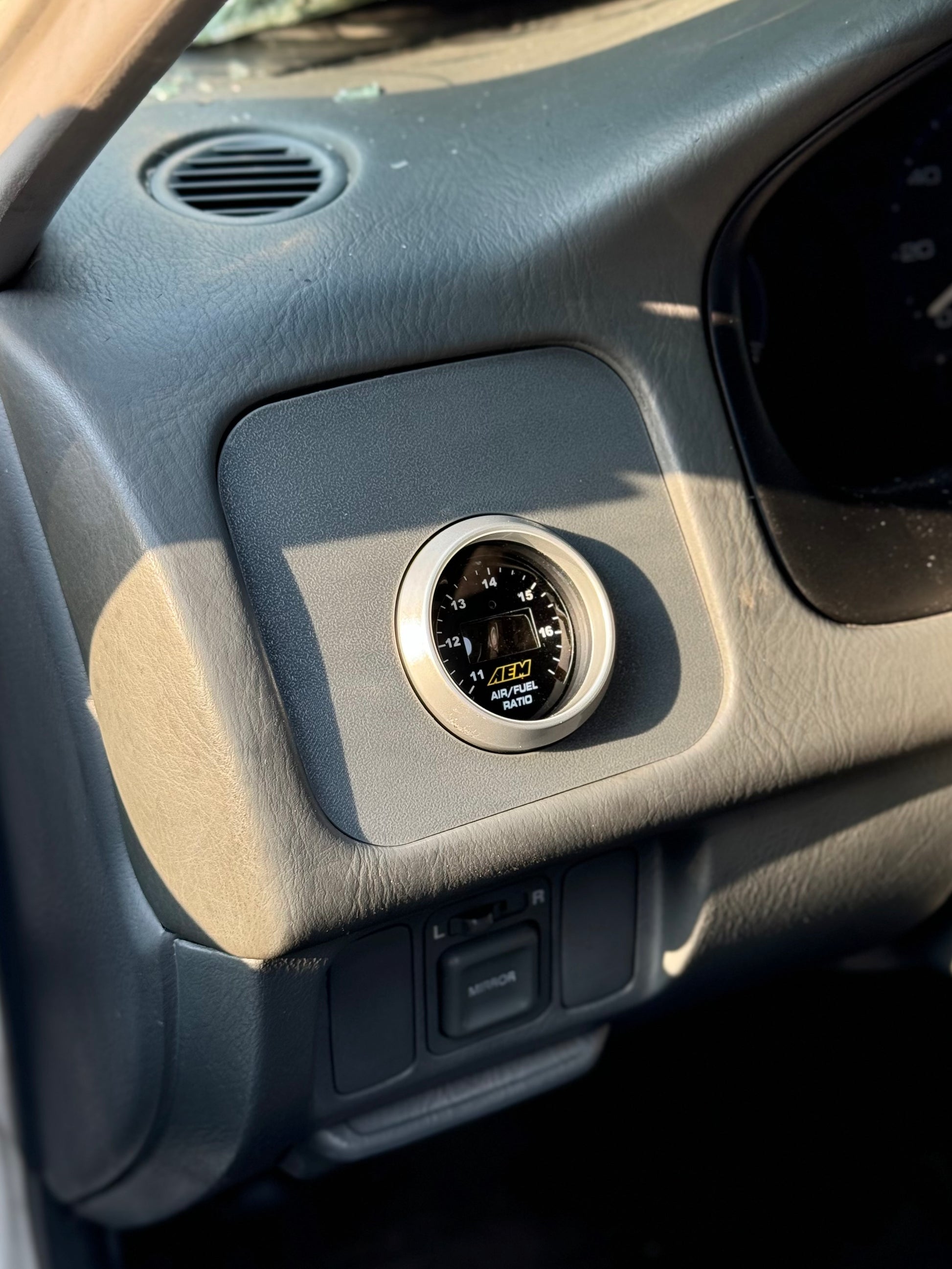

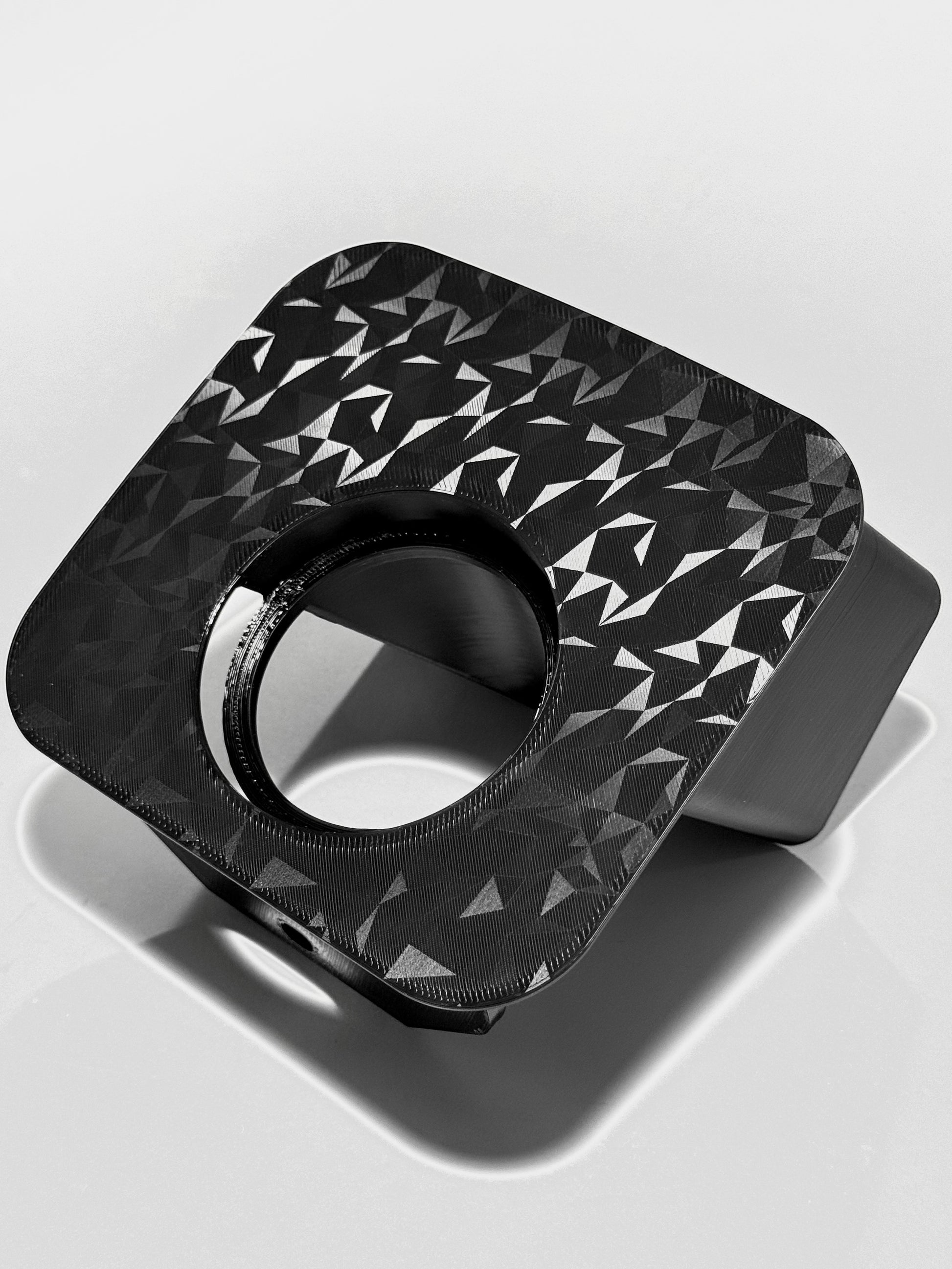

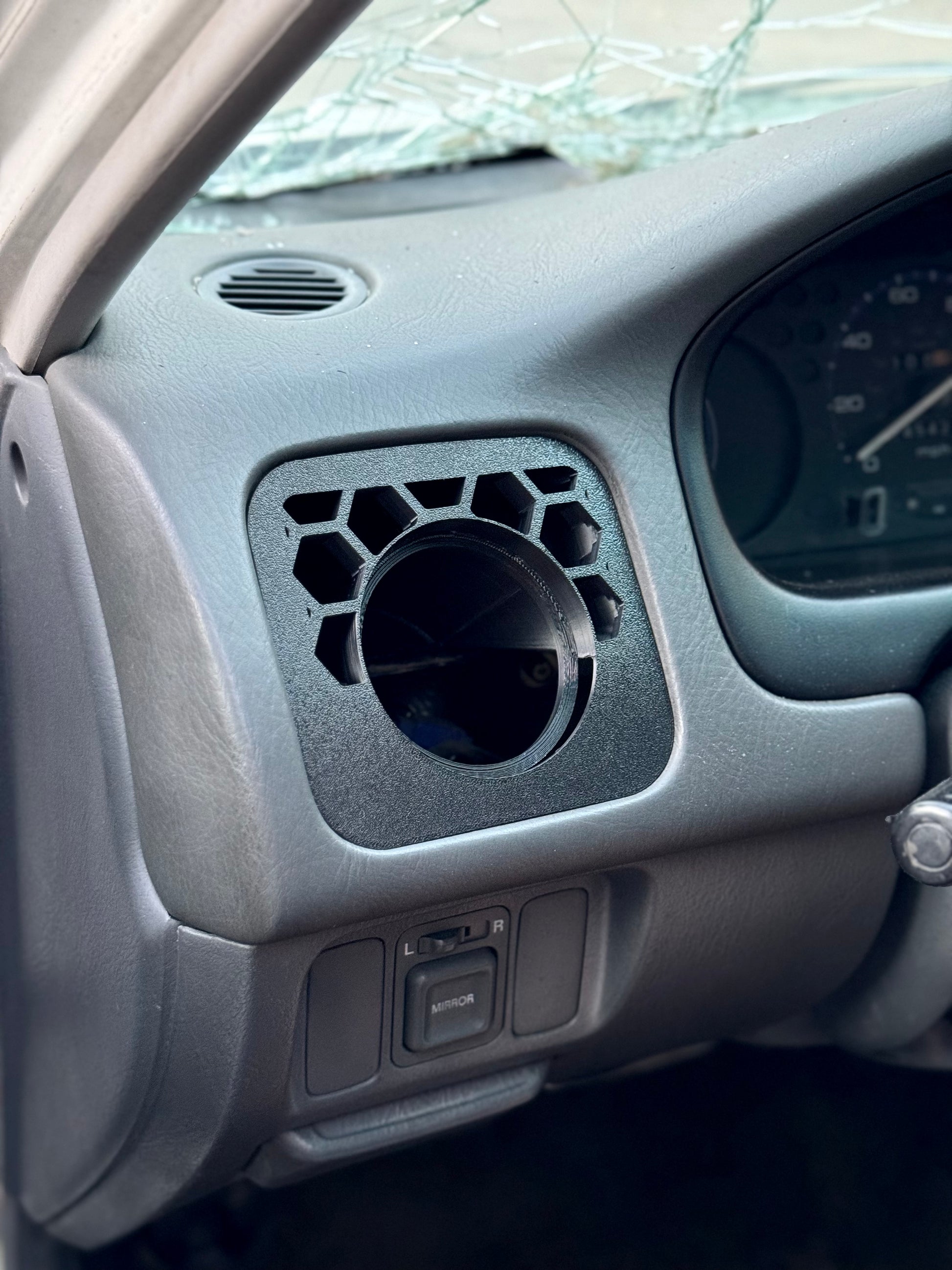

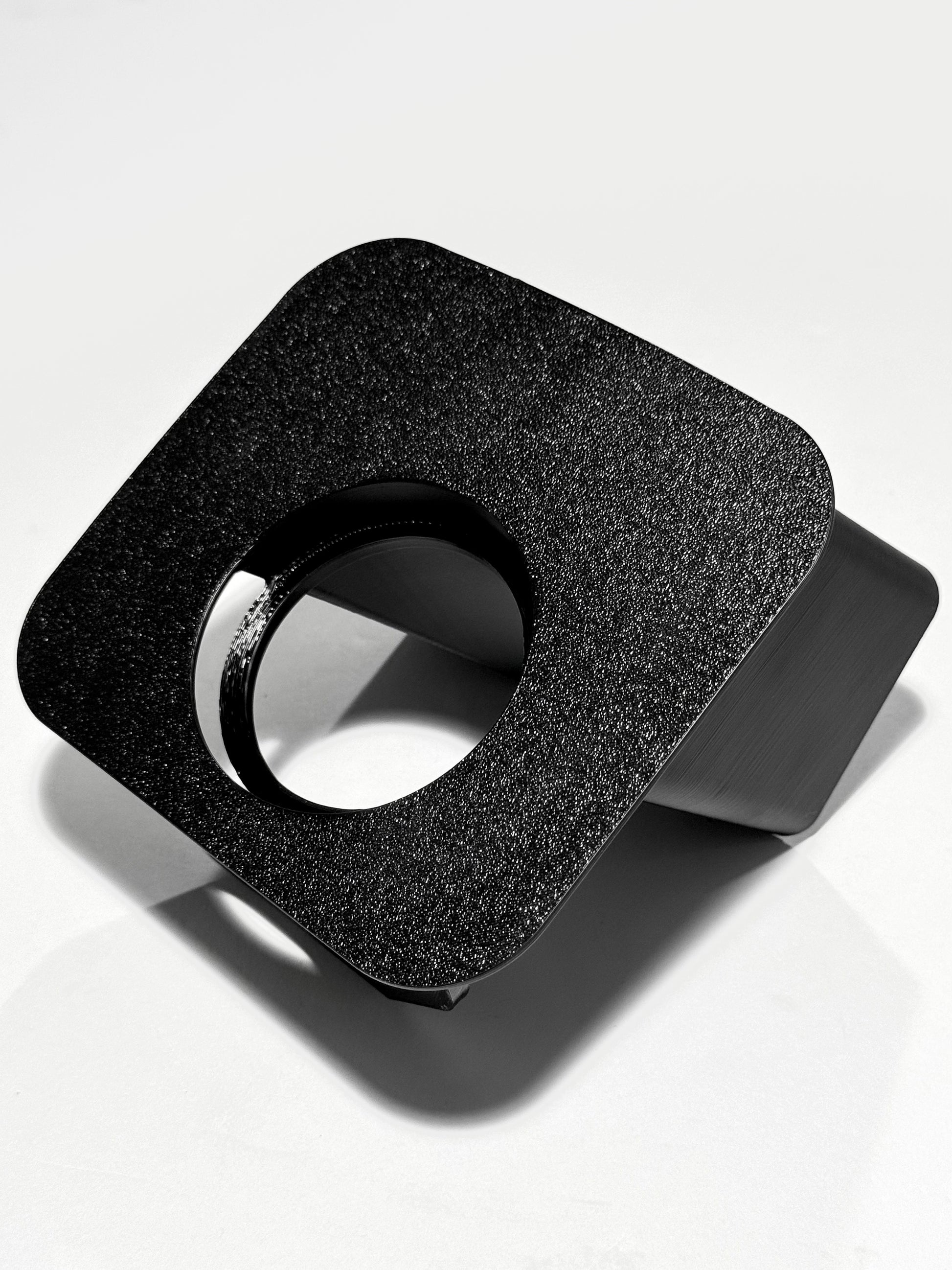

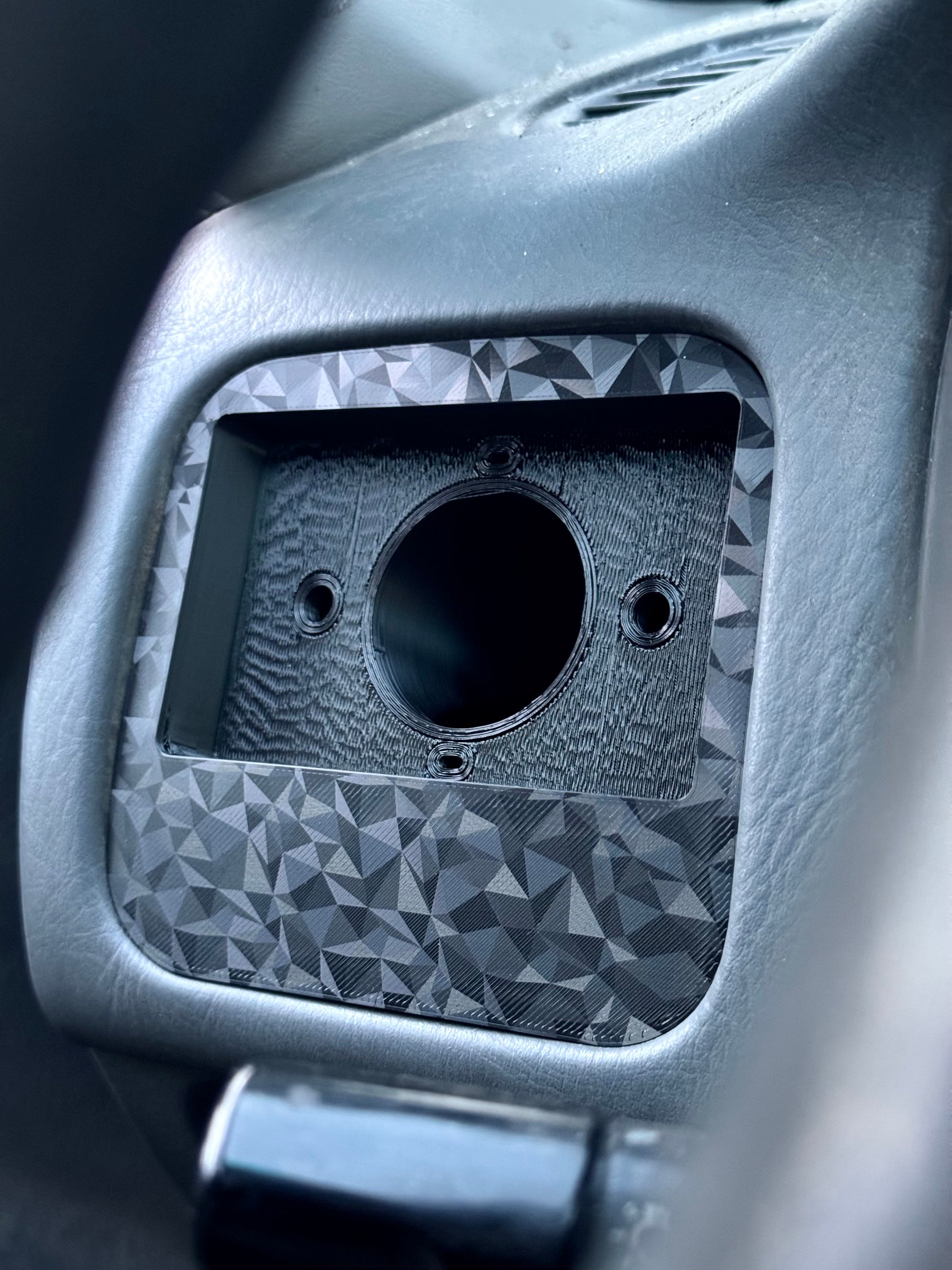

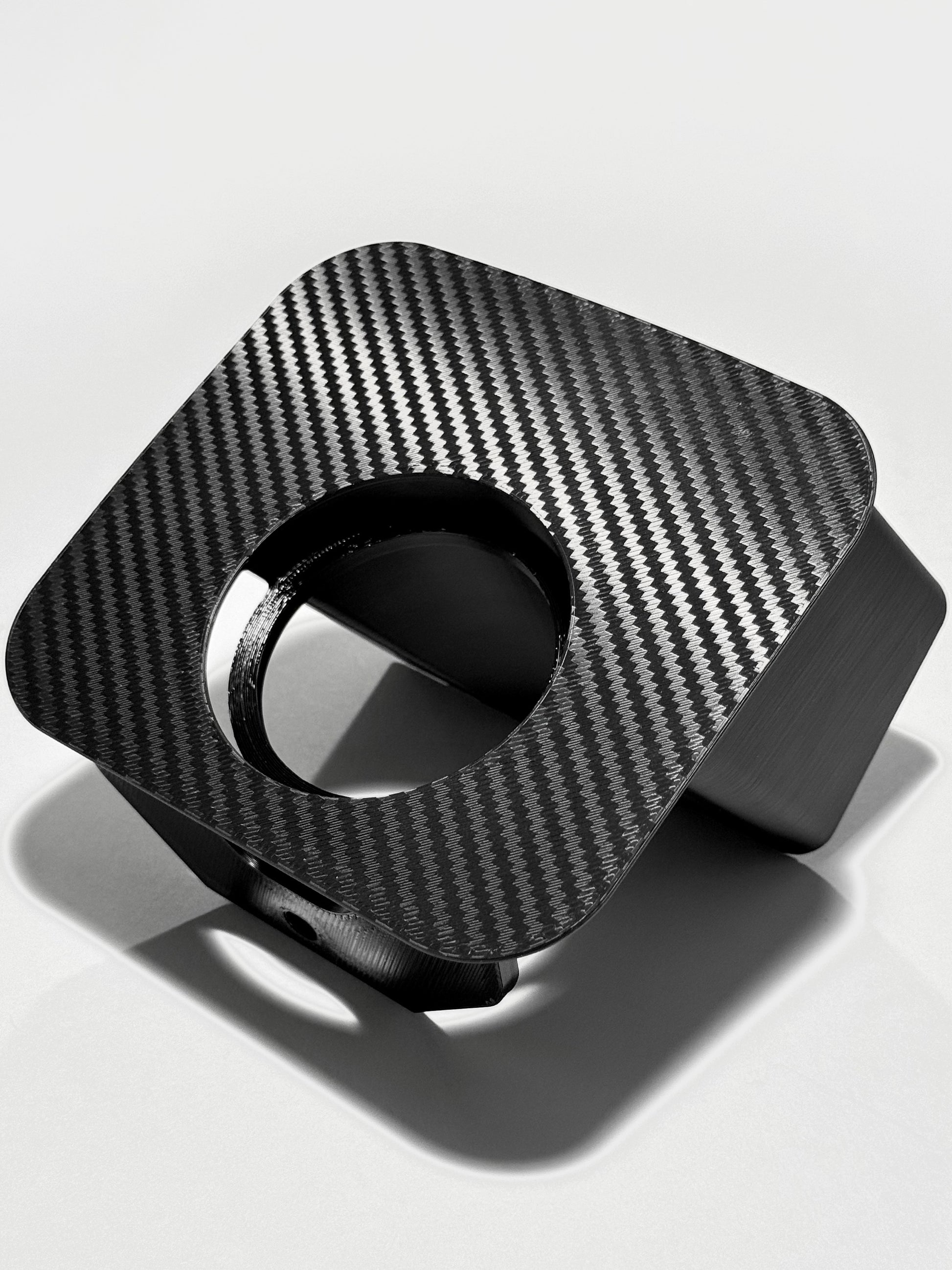

- GAUGE -

Fits one 52mm gauge (10mm recessed)

-

- VENT -

Includes cruise/dimmer relocation mount

-

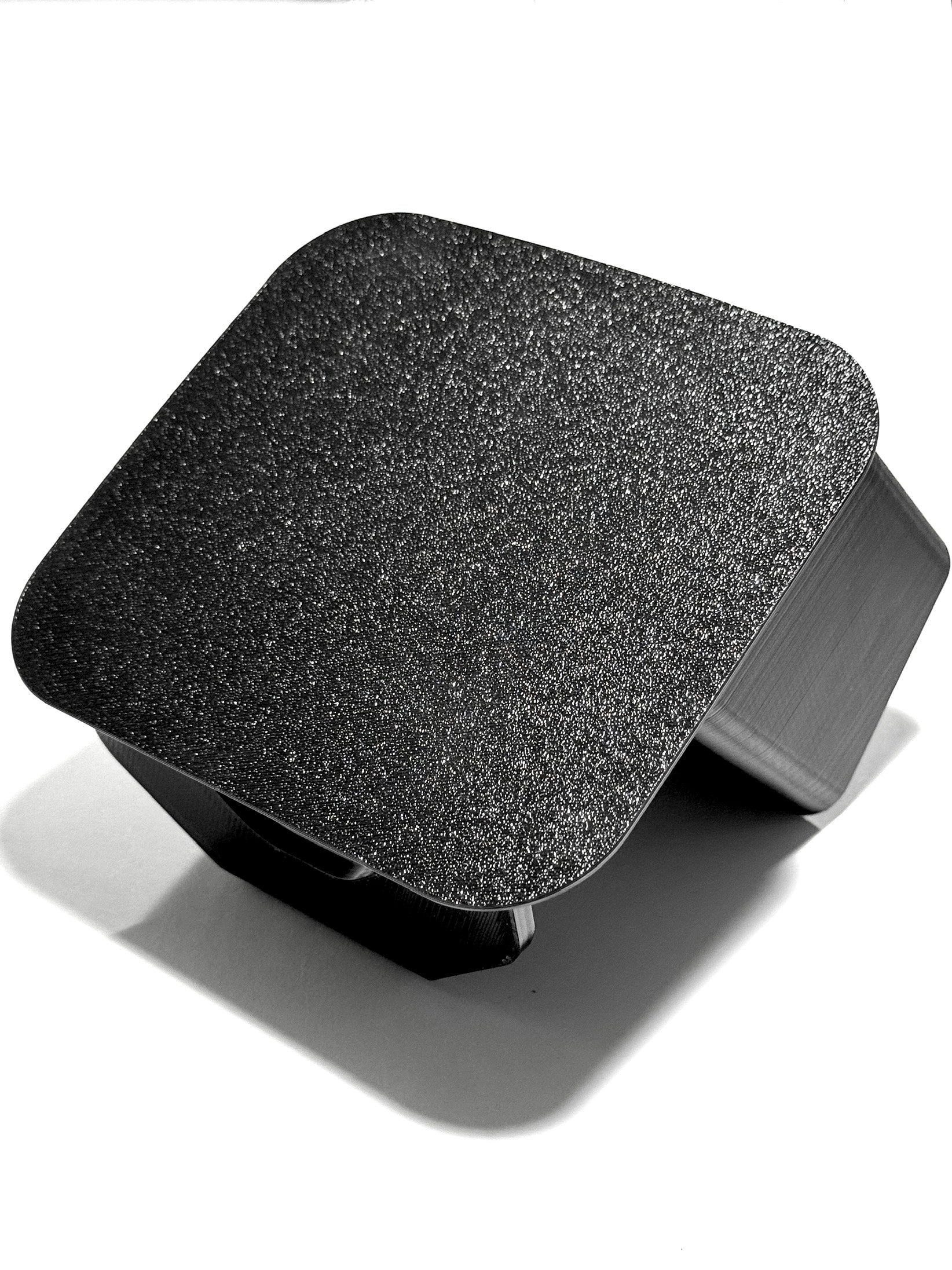

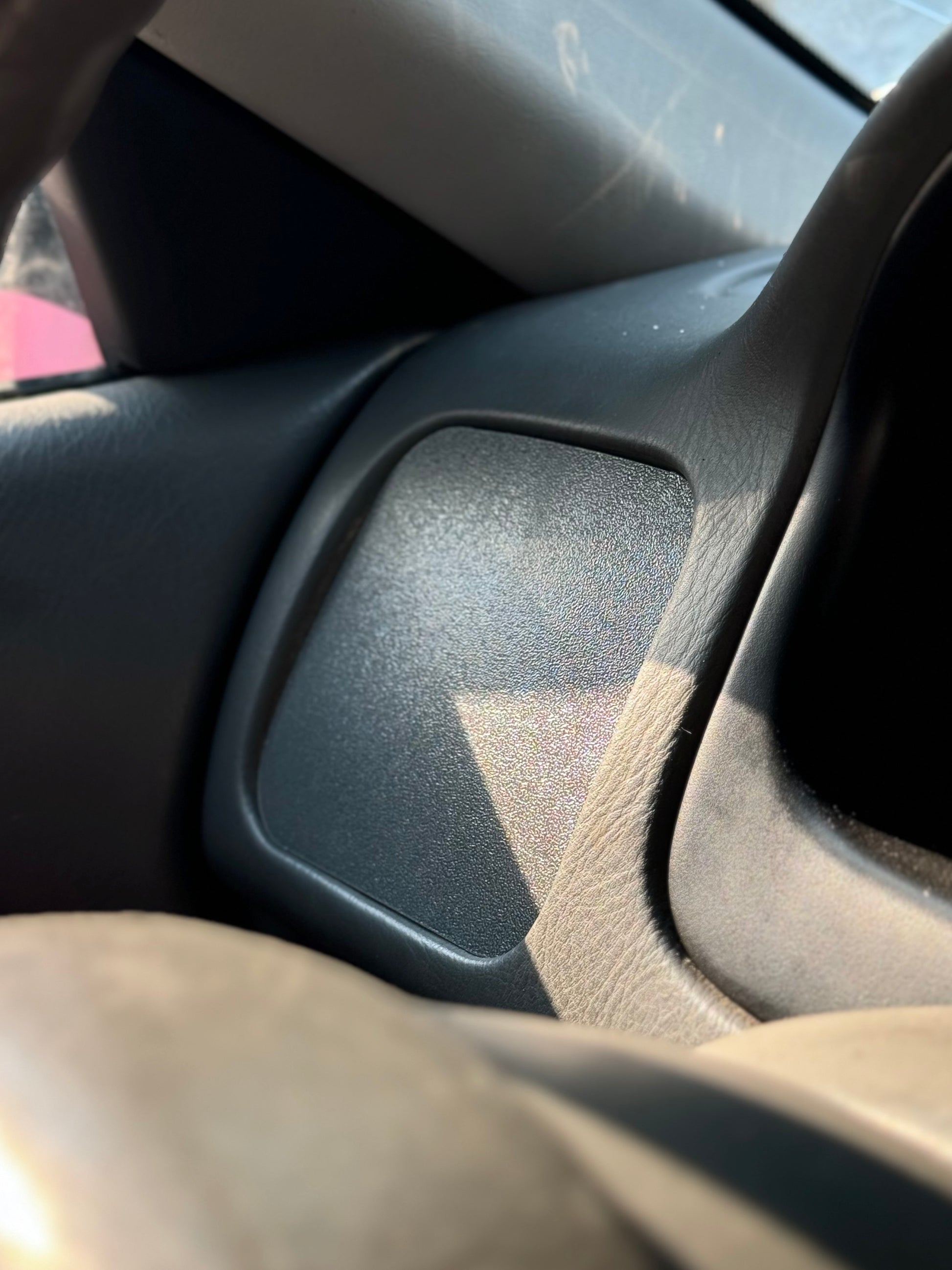

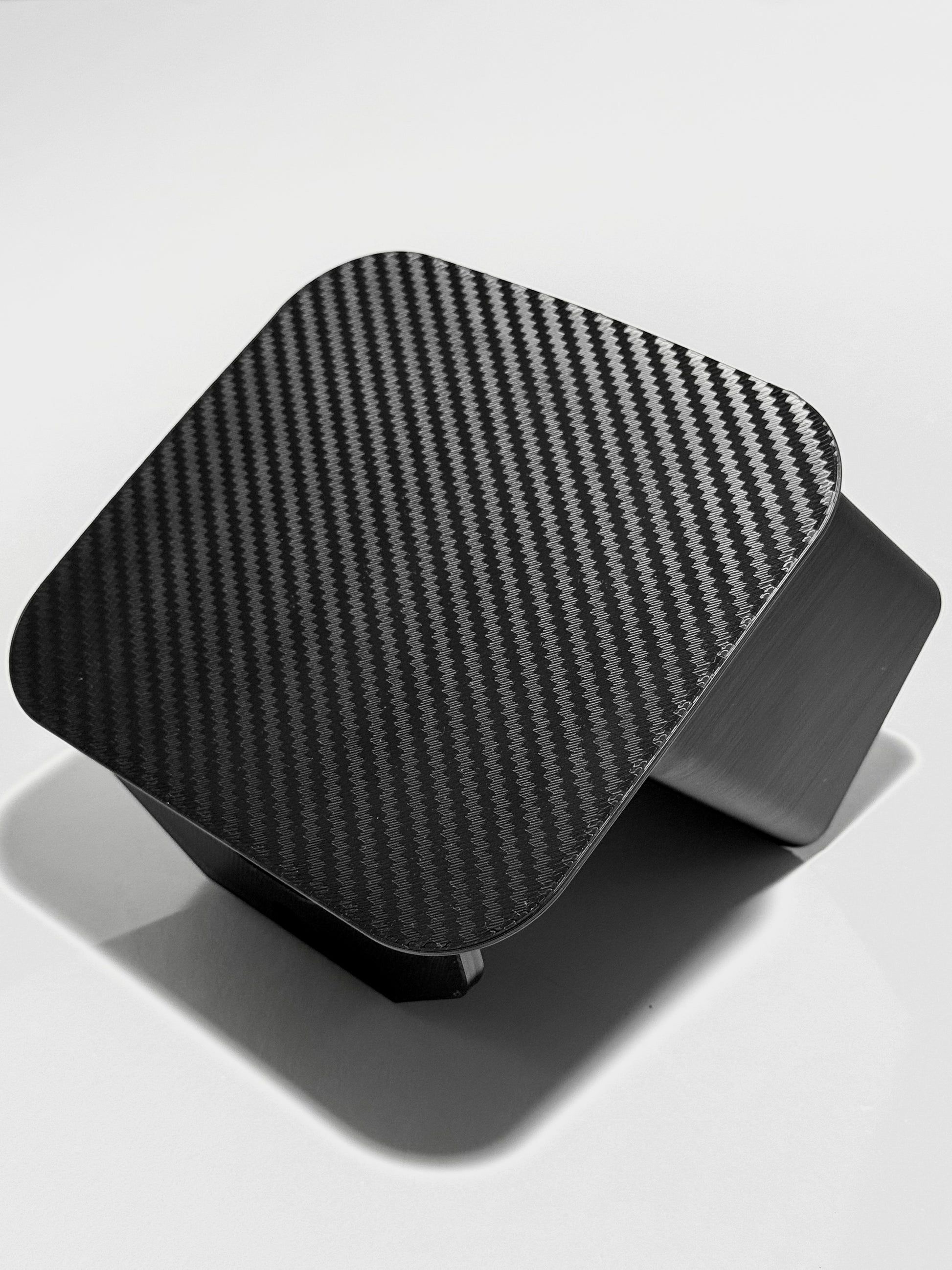

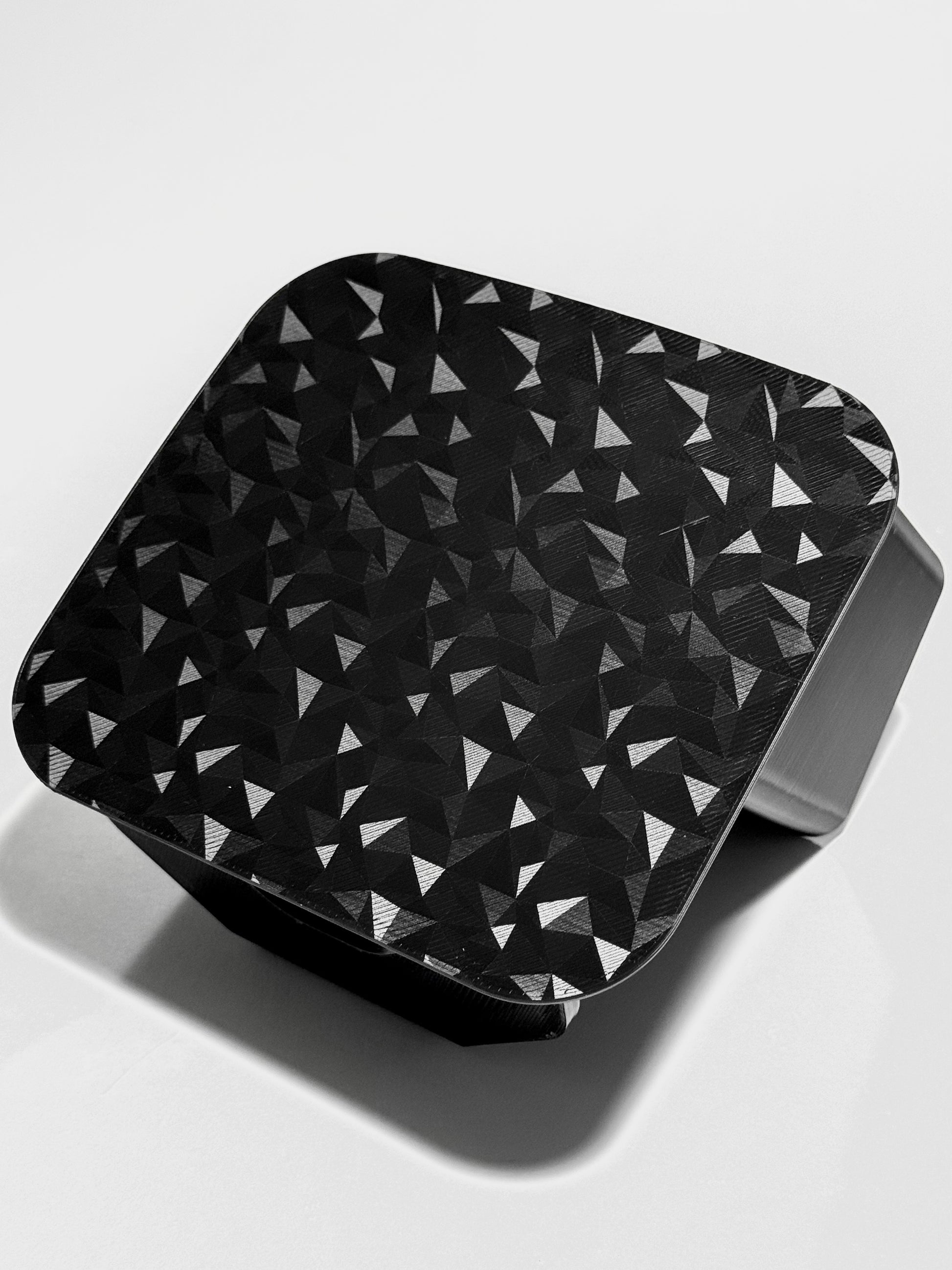

- DELETE -

Blank vent face

-

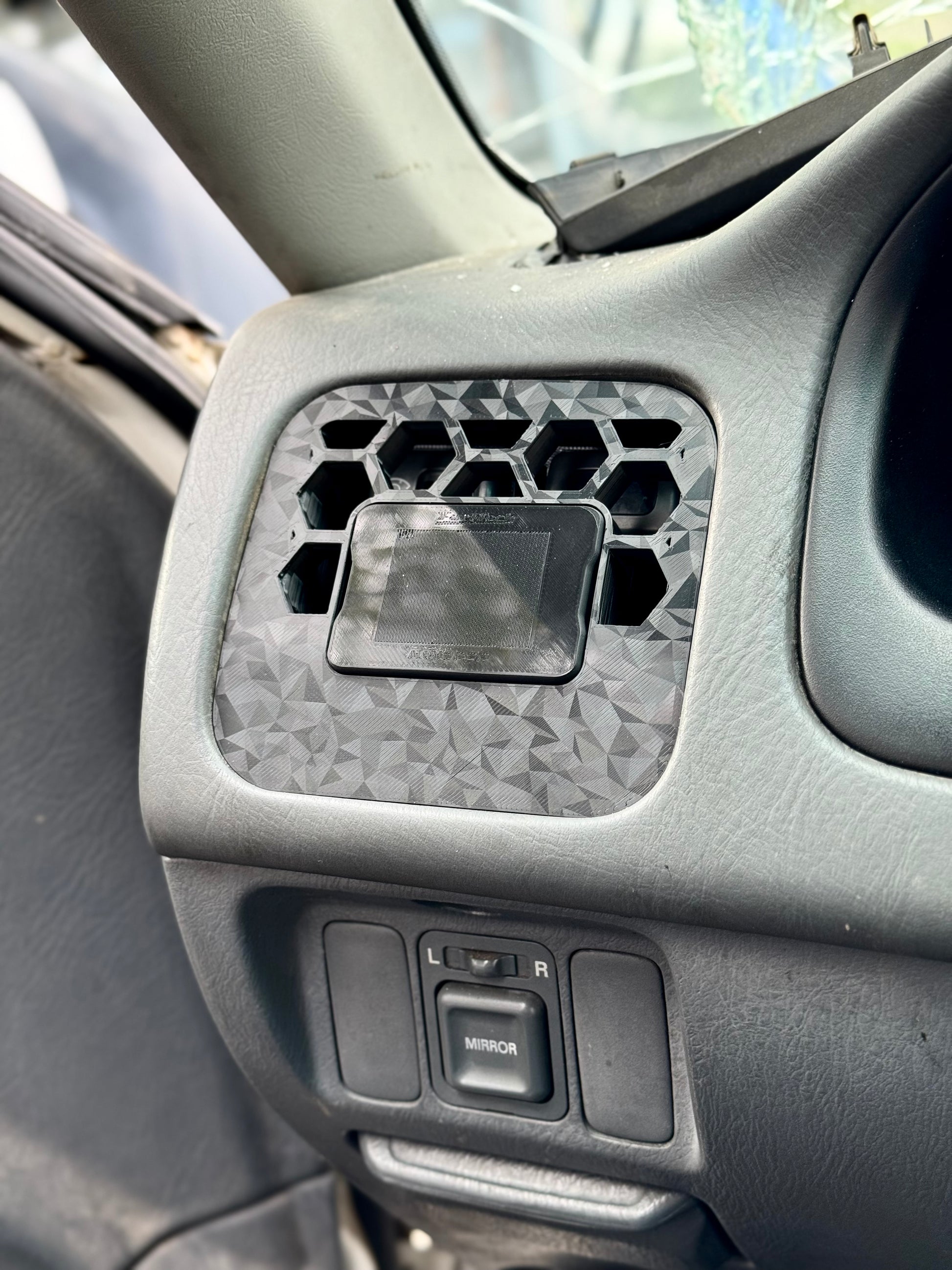

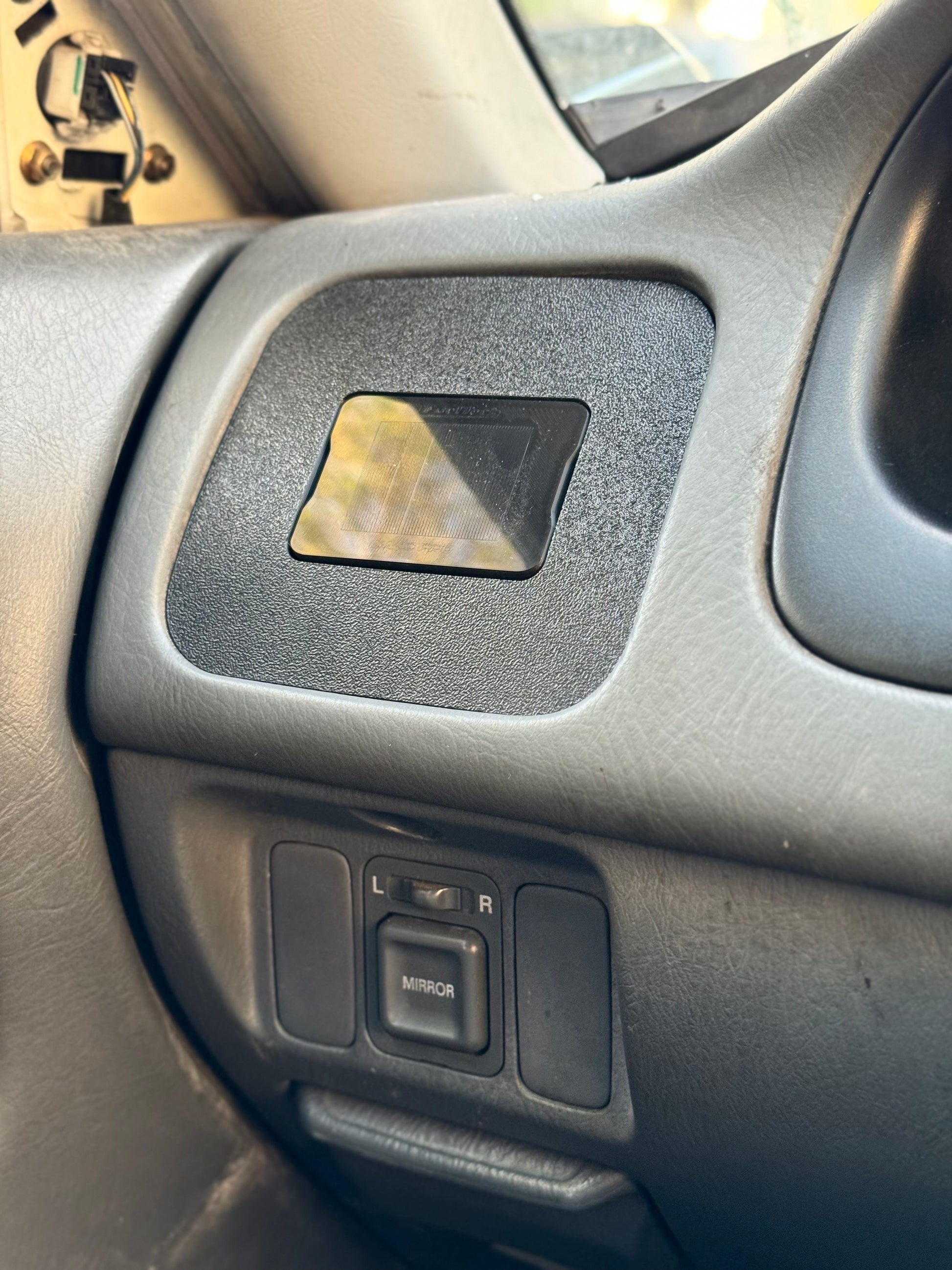

- NANO PRO -

Flush mount for Fuel Tech Nano Pro

(mounting also fits nano WB-02)

-

- NANO PRO + VENT -

Flush mount for Fuel Tech Nano Pro

Includes cruise/dimmer relocation mount

(mounting also fits nano WB-02)

-

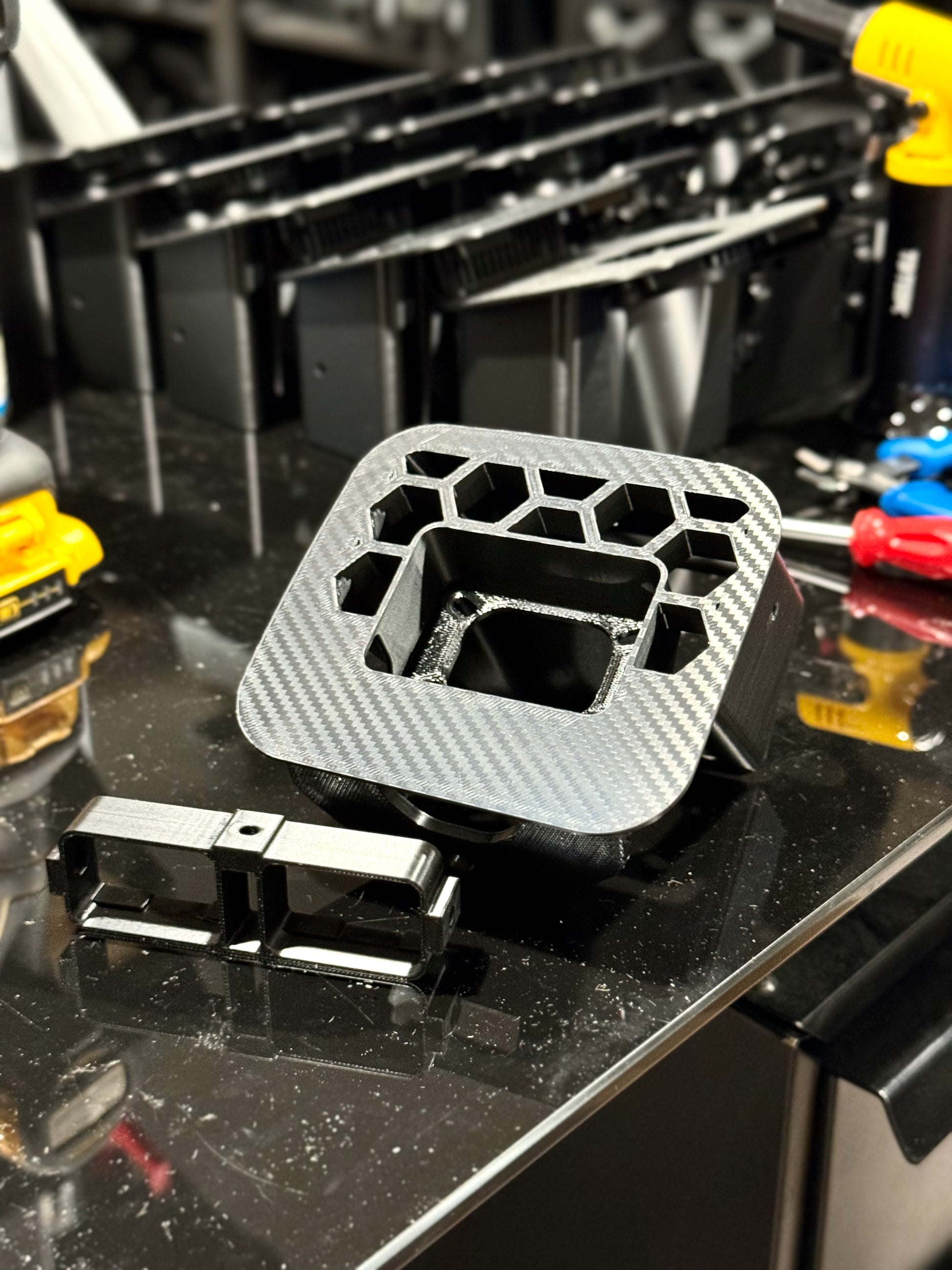

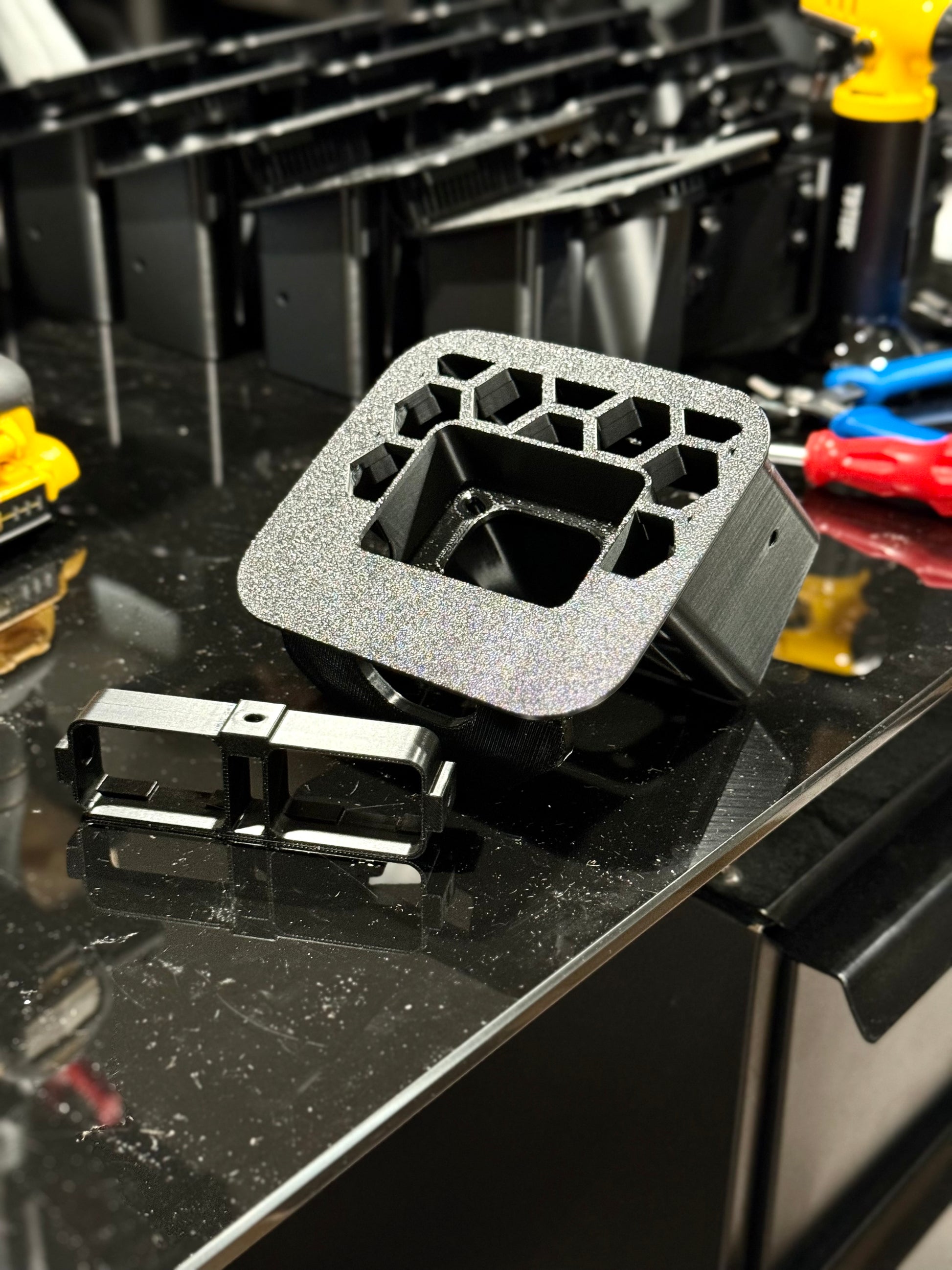

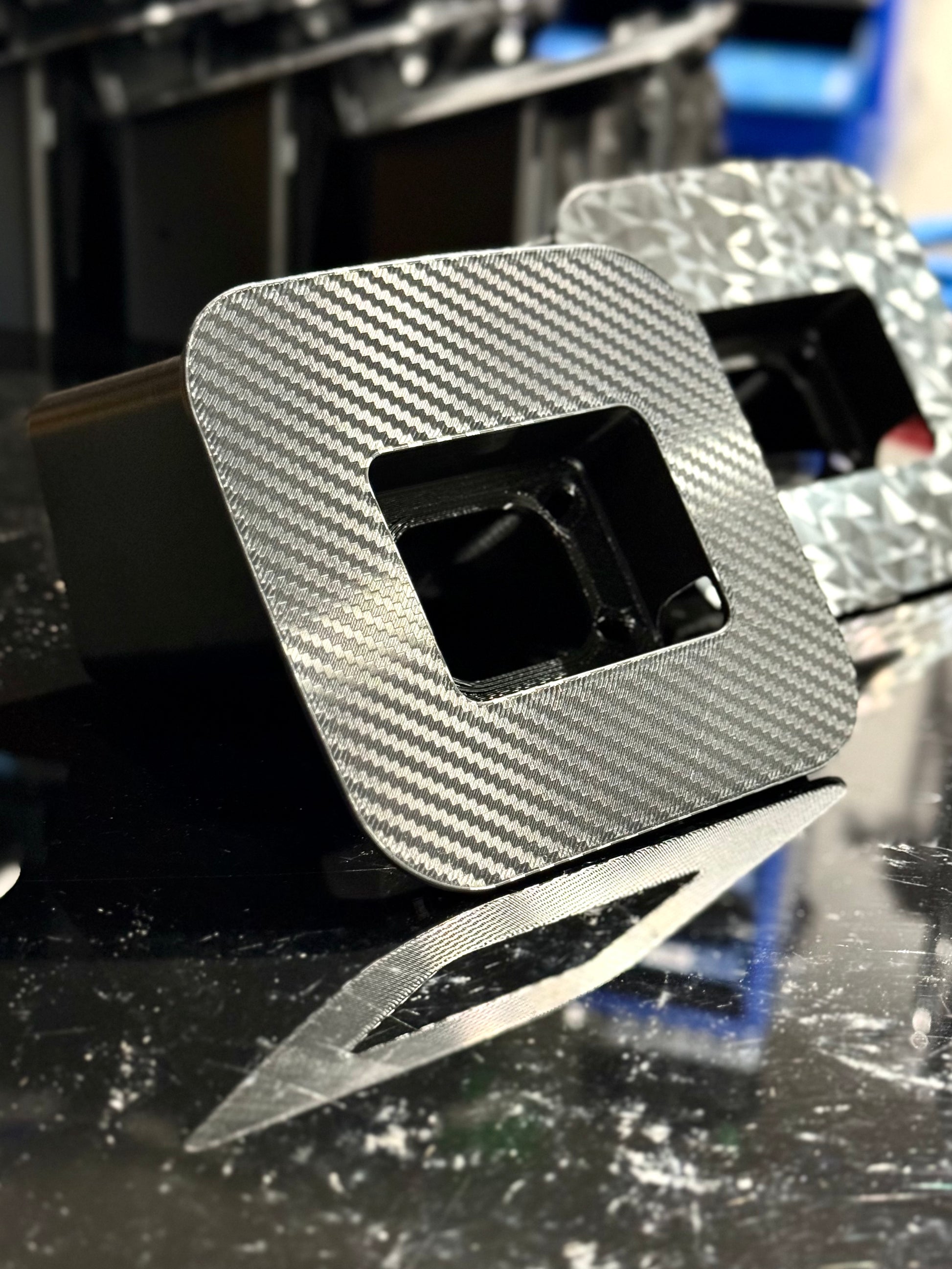

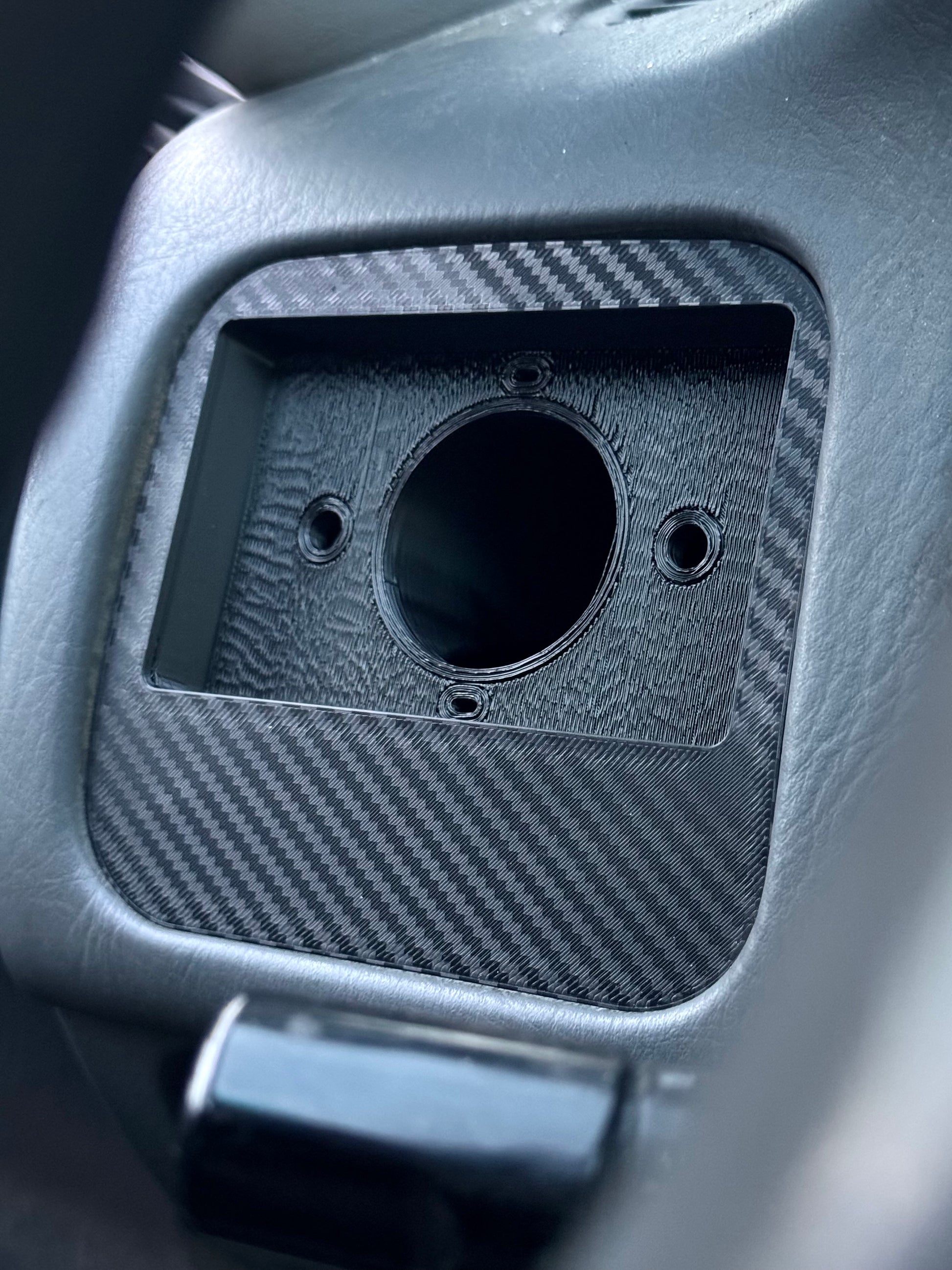

- RECESSED 2X4 KEYPAD -

Fits Haltech, Motec, and Grayhill 2X4 CAN keypads

Cutout size - 106 X 64 X 16 mm (W x H x D)

Bolt spacing - 68.6 mm

-

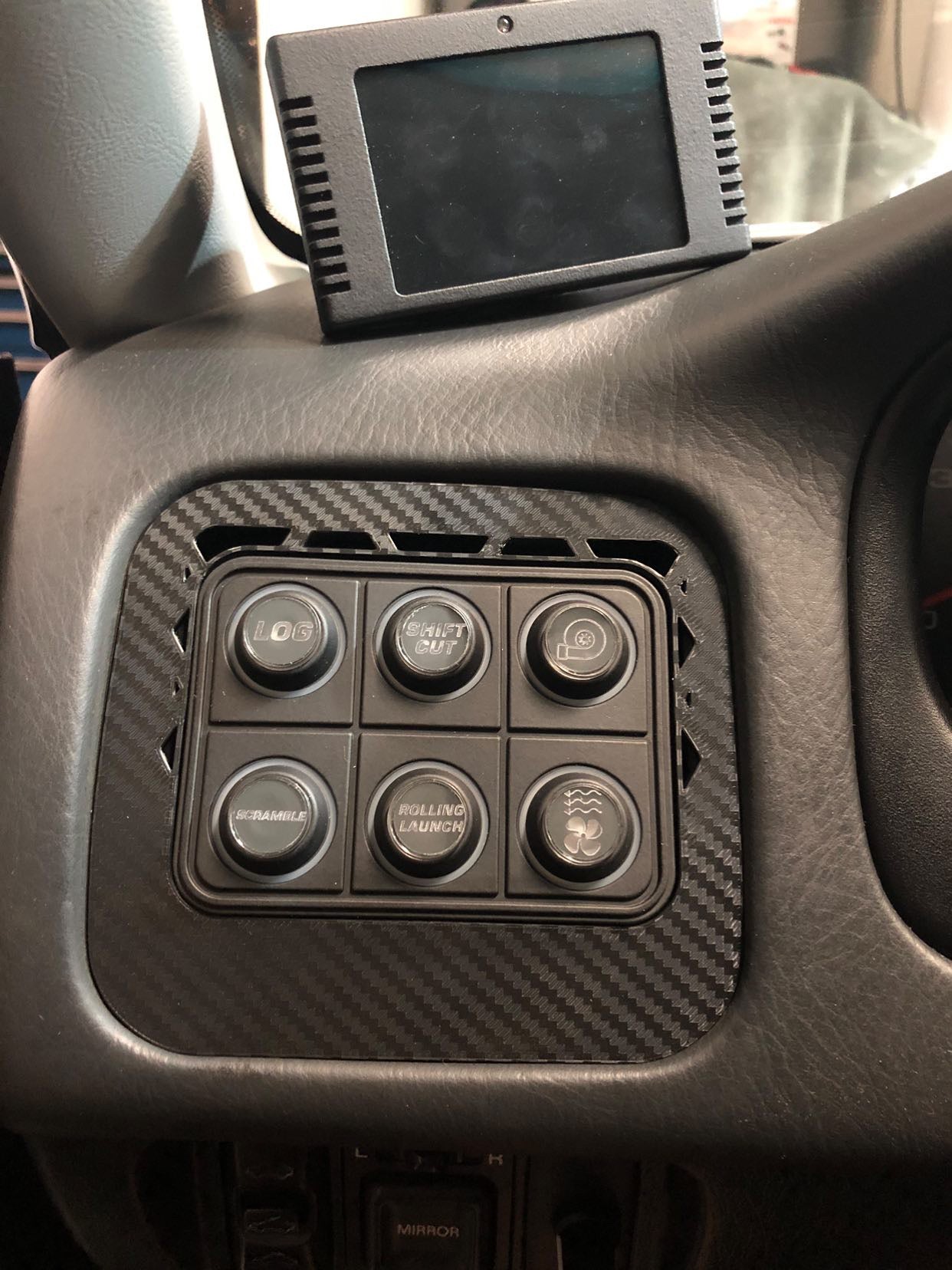

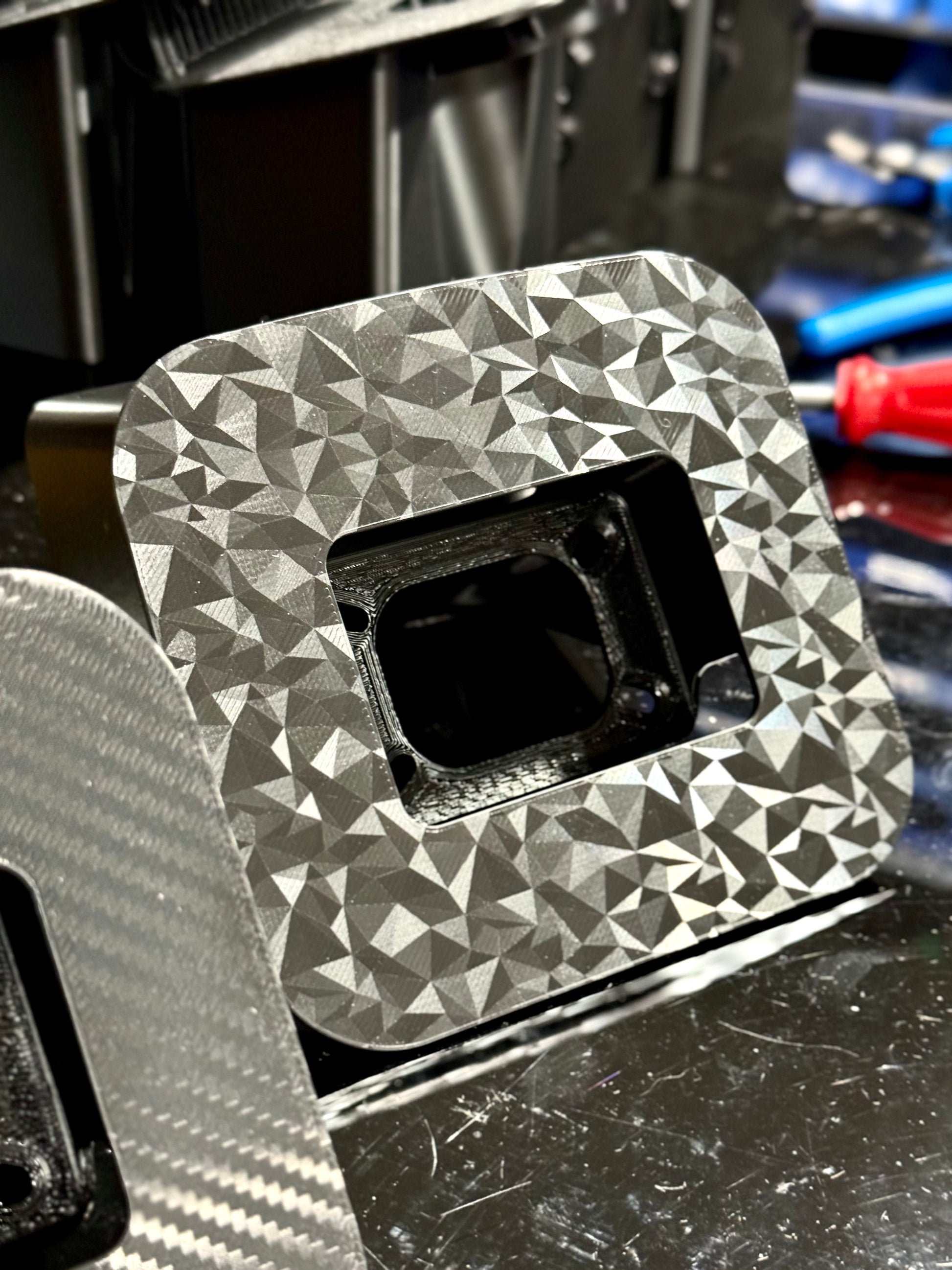

- RECESSED 2X3 KEYPAD -

Fits ECU Master 6 button CAN Keypad

Cutout size - 94.5 X 70 X 16.3 mm (W x H x D)

Bolt spacing - 48.7 mm

NO CRUISE / DIMMER RELOCATION

-

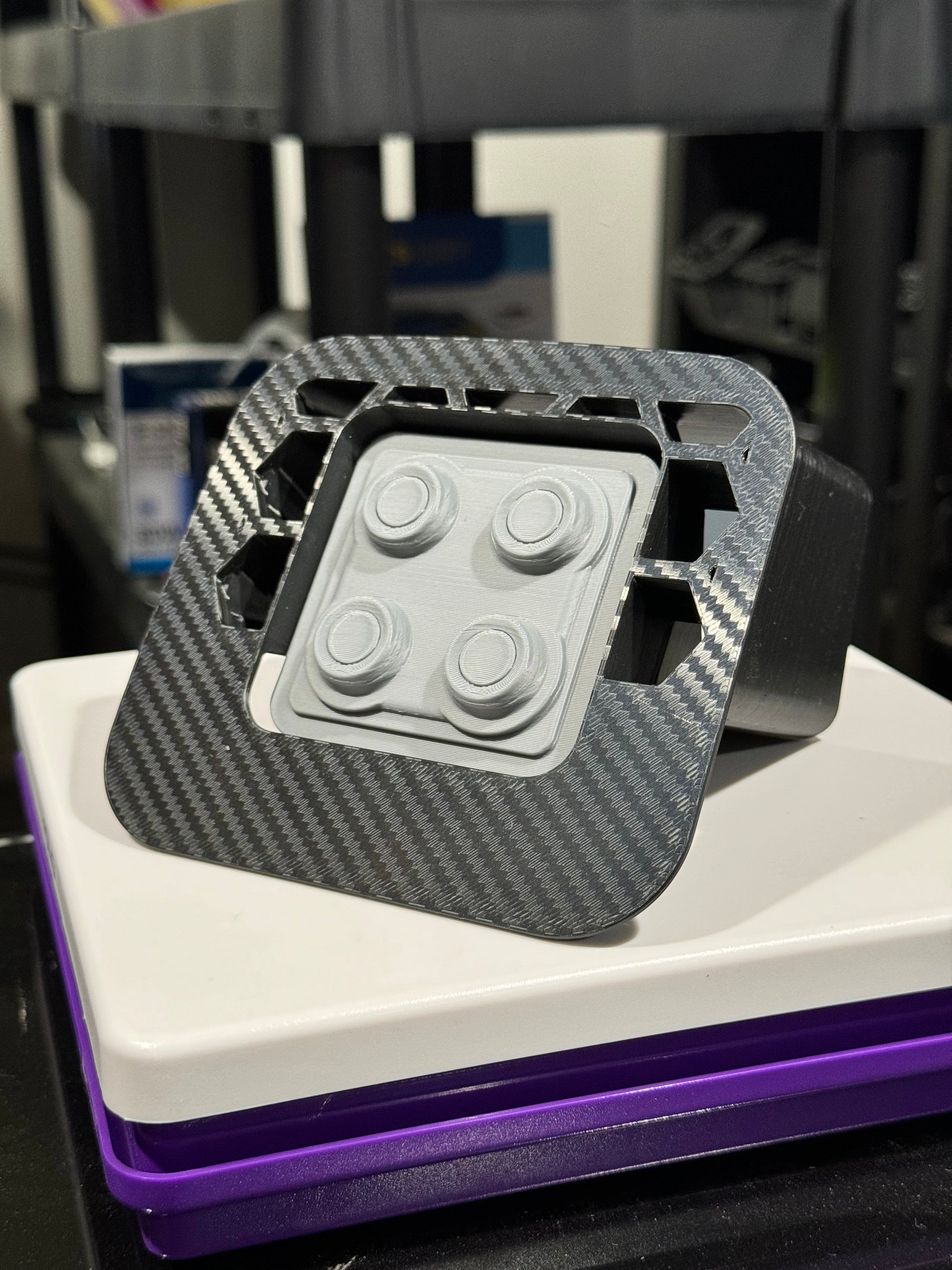

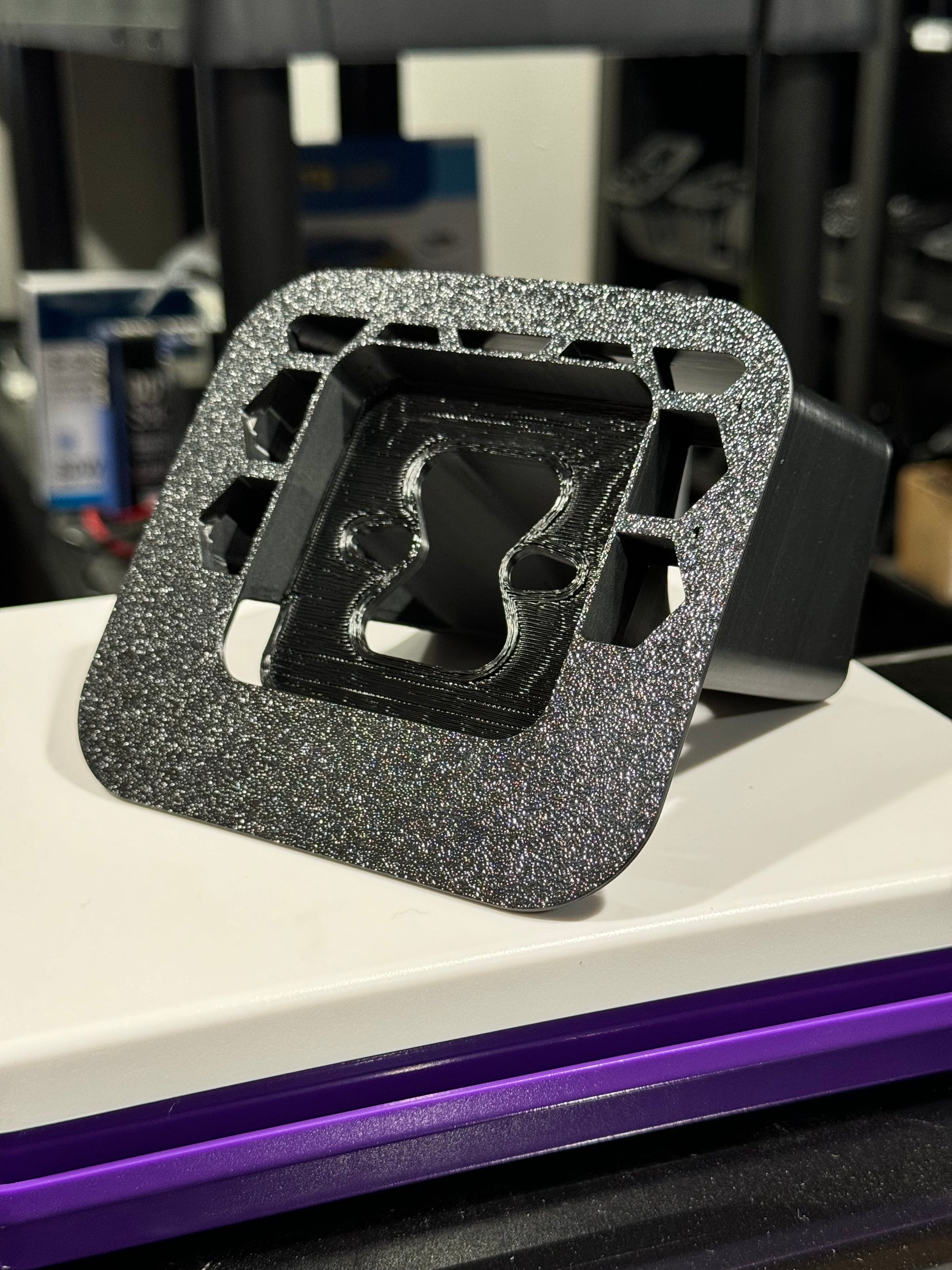

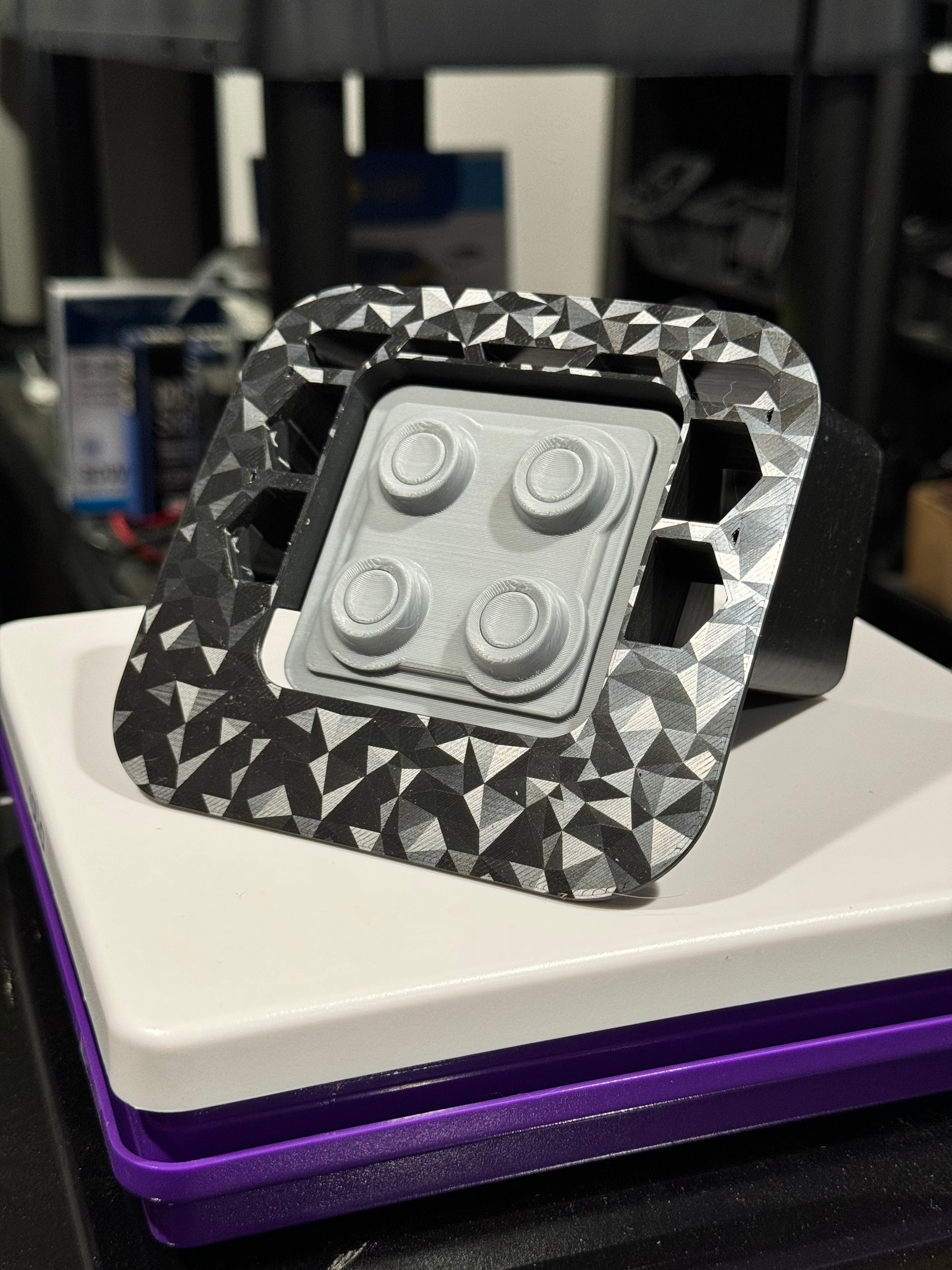

- RECESSED 2X2 KEYPAD -

Fits FuelTech 4 mini 2x2 CAN Keypad

(and ECU Master with side gaps)

Cutout size -  X   X  mm (W x H x D)

Bolt spacing -  mm

NO CRUISE / DIMMER RELOCATION

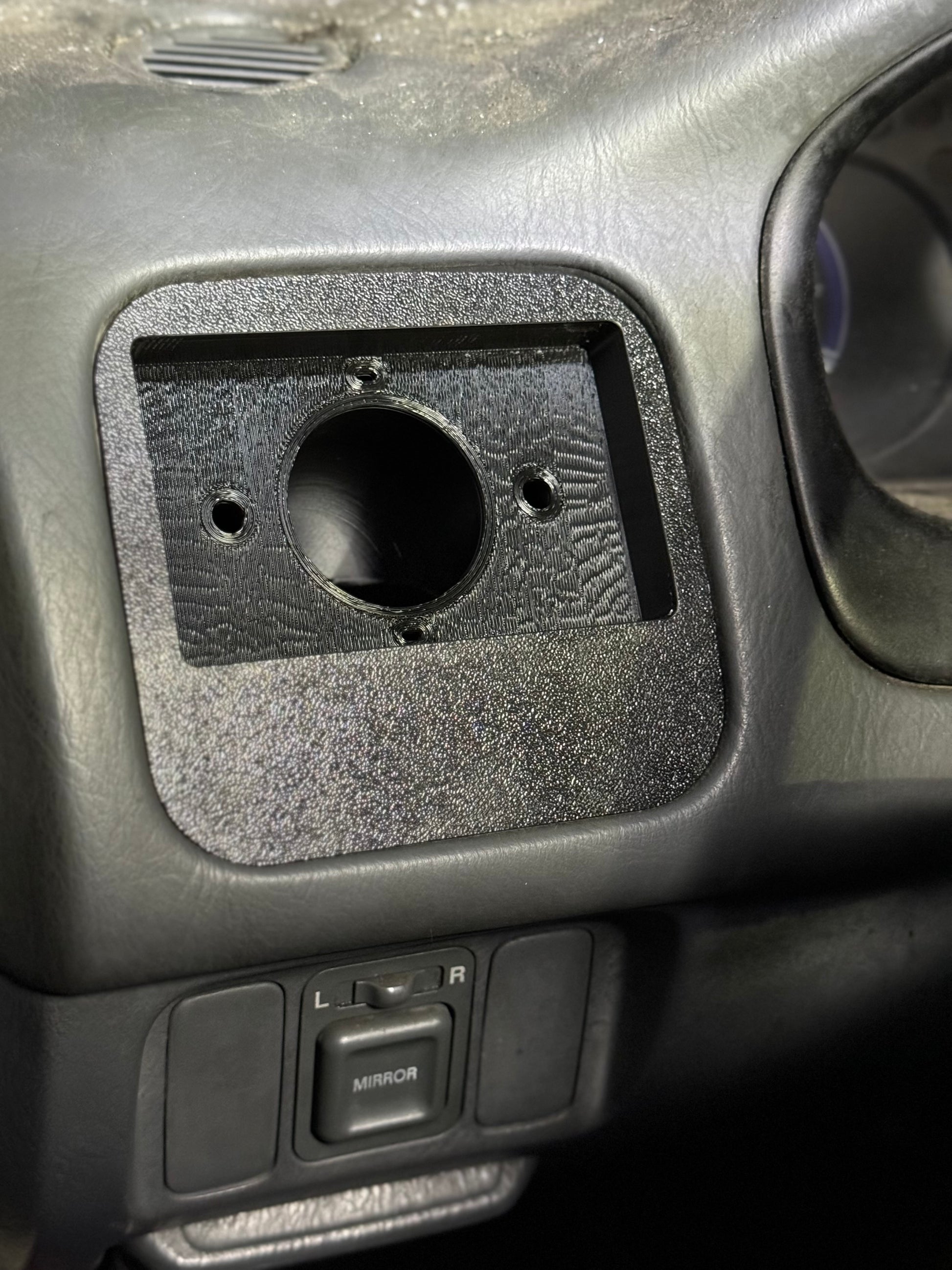

- 66 GAUGE + VENT -

Fits one 66.7 mm gauge (10mm recessed)

NO CRUISE / DIMMER RELOCATION

-

INSTALL ( * - for re installing cruise/dimmer)

1- Remove original vent by prying up on the 2 lower corners to release the clips

*2- Unplug and push out buttons (press in on side metal tabs), they come out the front

*3- Take out relocation mount and insert factory buttons, screw back in to vent body

4- Back out hidden screw below the vent (above the mirror switch)

5- Insert replacement vent. Push in on the lower edge while tightening the screw. It will act as a stud, and hold the lower portion of the vent pulled in

* Honeycomb design and mounting inspired by RostaP Honeycomb Storage Wall (HSW) on Printables - Print your own or buy HSW mounts. Screw type mounts may need longer hardware to fit this vent design since its deeper, clips will work as is *
