Cluster Display Mounts EF/CRX

90-91 Honda Civic EF AND CRX

OR 88/89 WITH CLUSTER HOOD SWAP

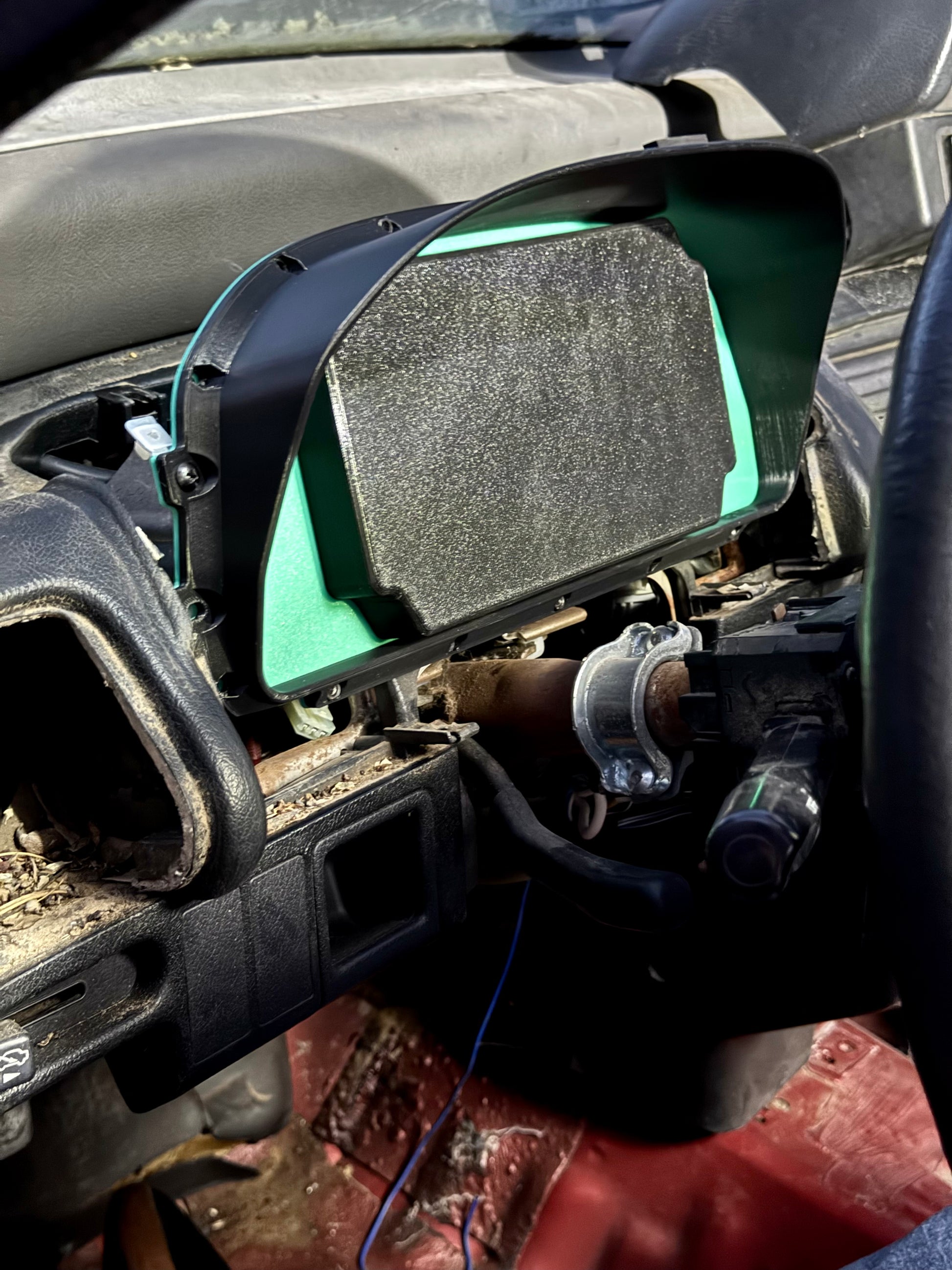

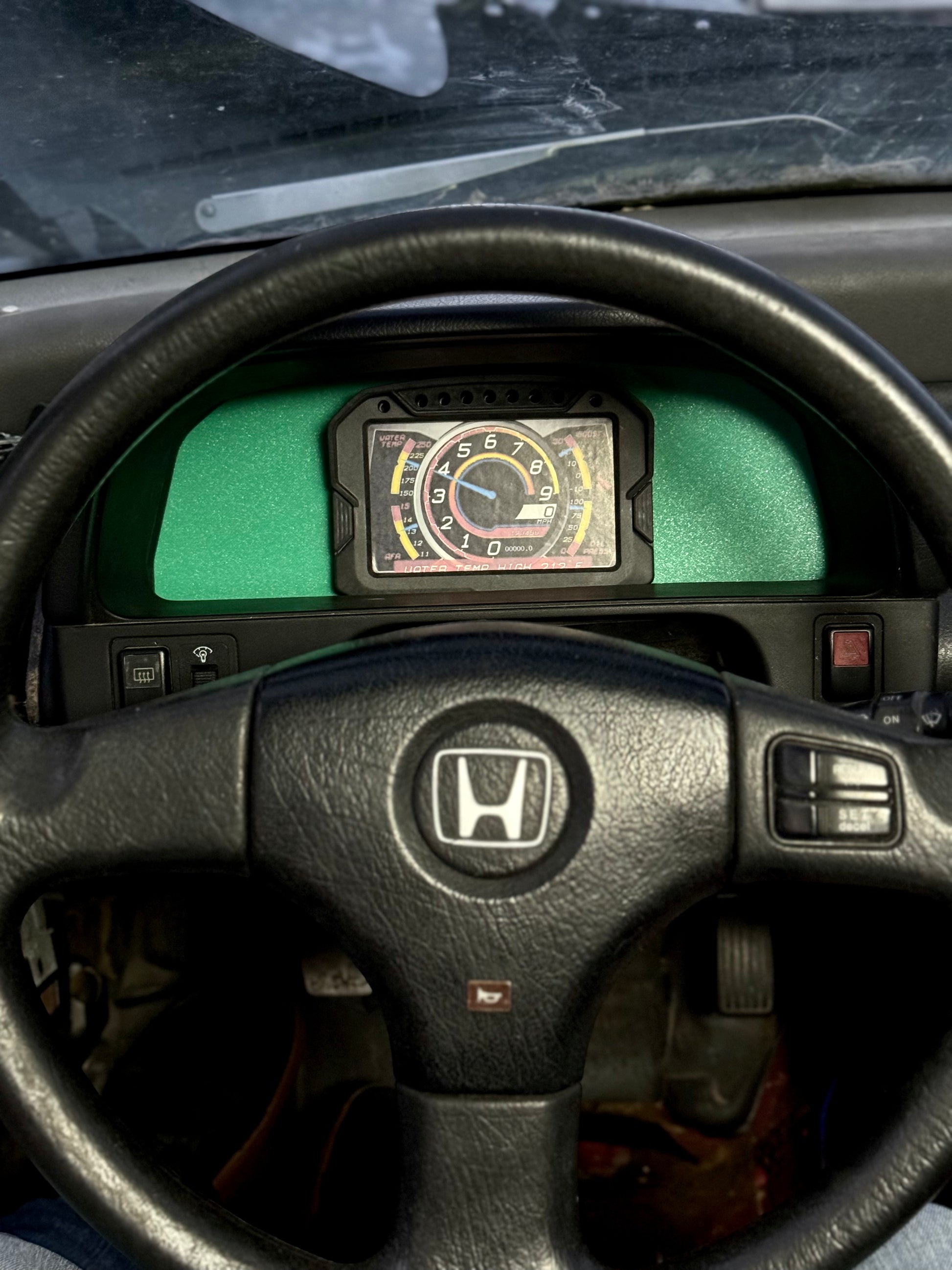

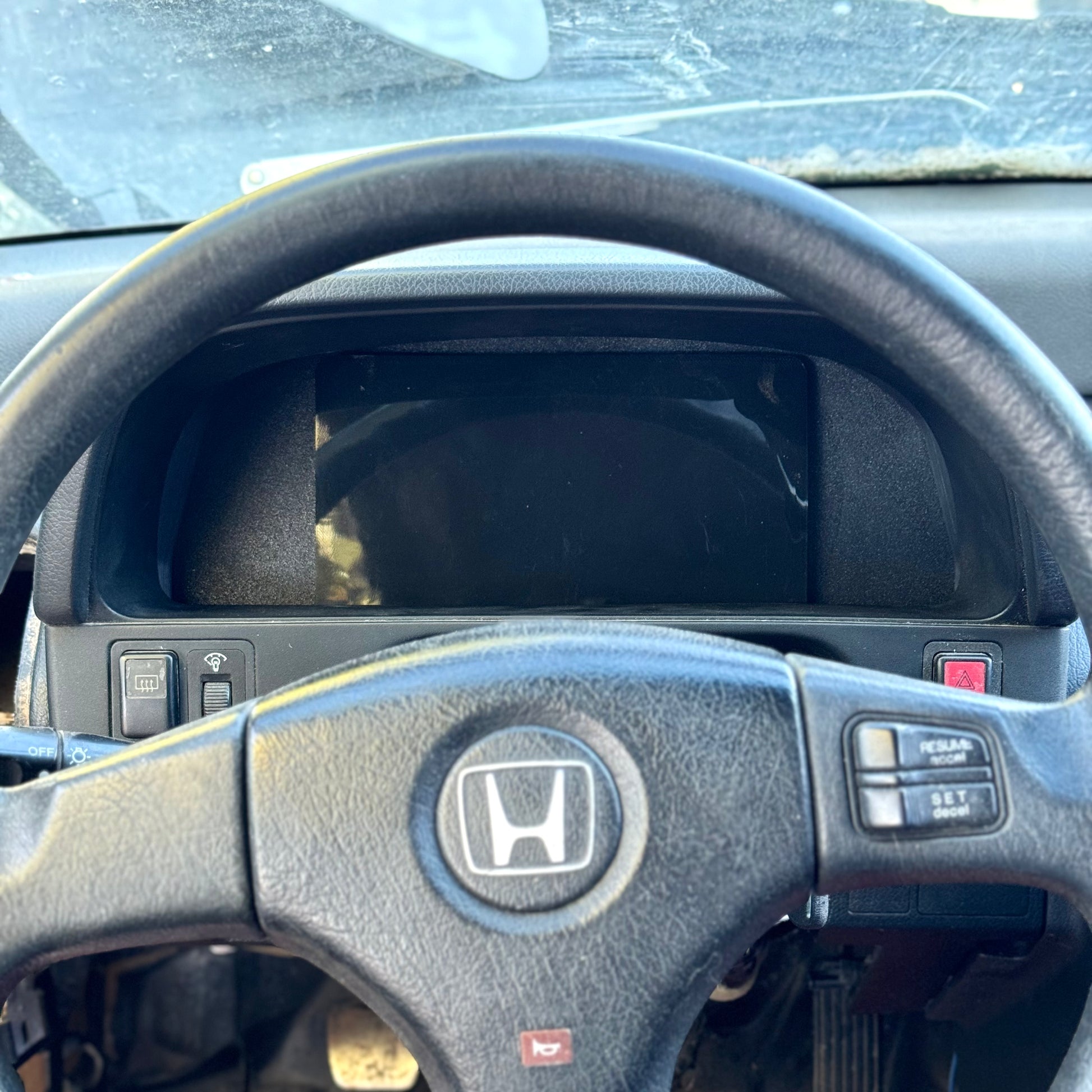

Replaces factory instrument / gauge cluster with an adapter mount

**** This listing is for a fully assembled display mount ****

The cluster housing is the same between the different variations

Only mount / face plates are different, and can be changed out if you wish to change setups

Designs are mirrored if you wish to flip the mount plate to the opposite side

Flat patterns (DXF) will be available for purchase as well if you wish to cut the plate from a different material or design yourself

What's included

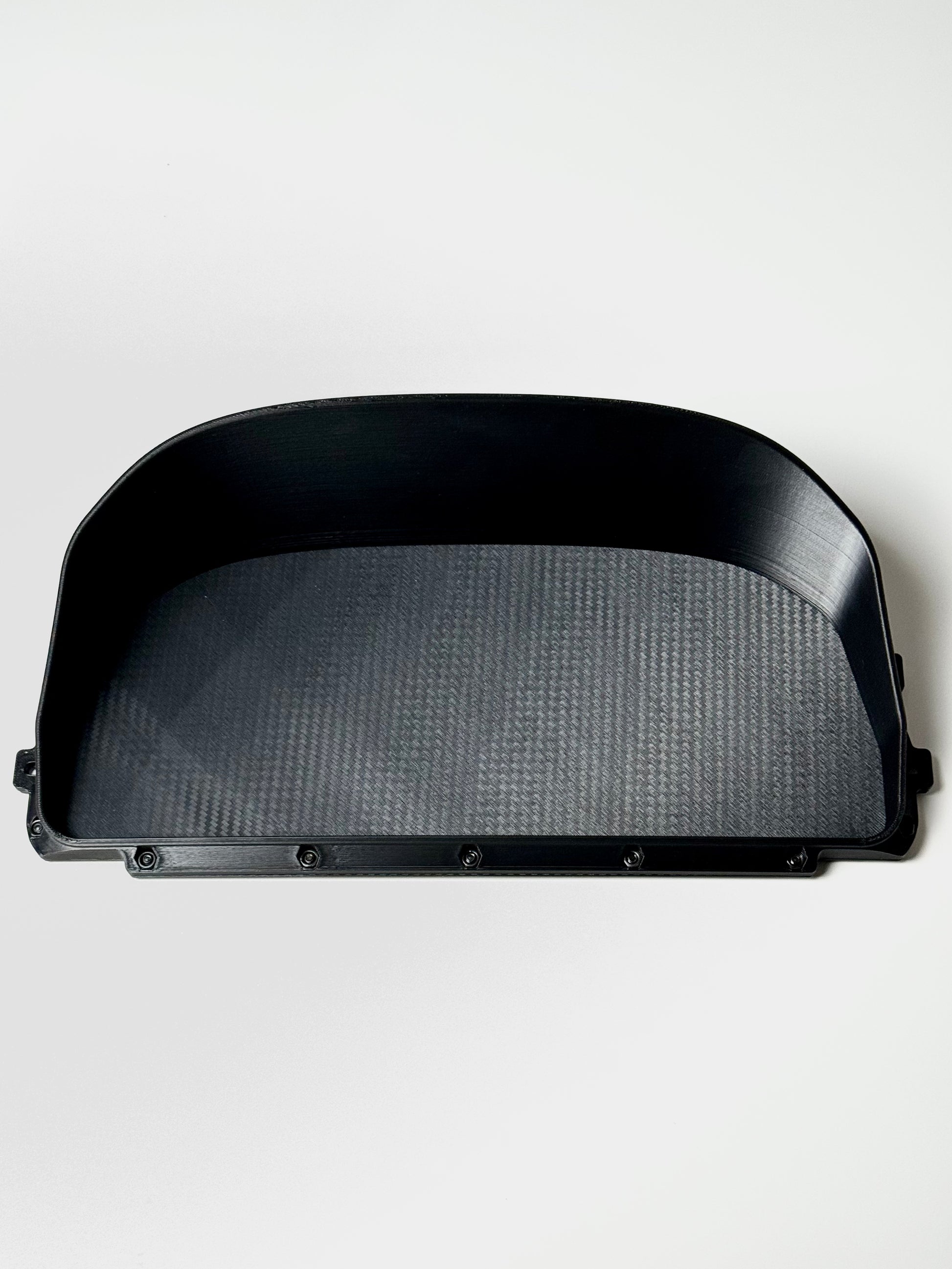

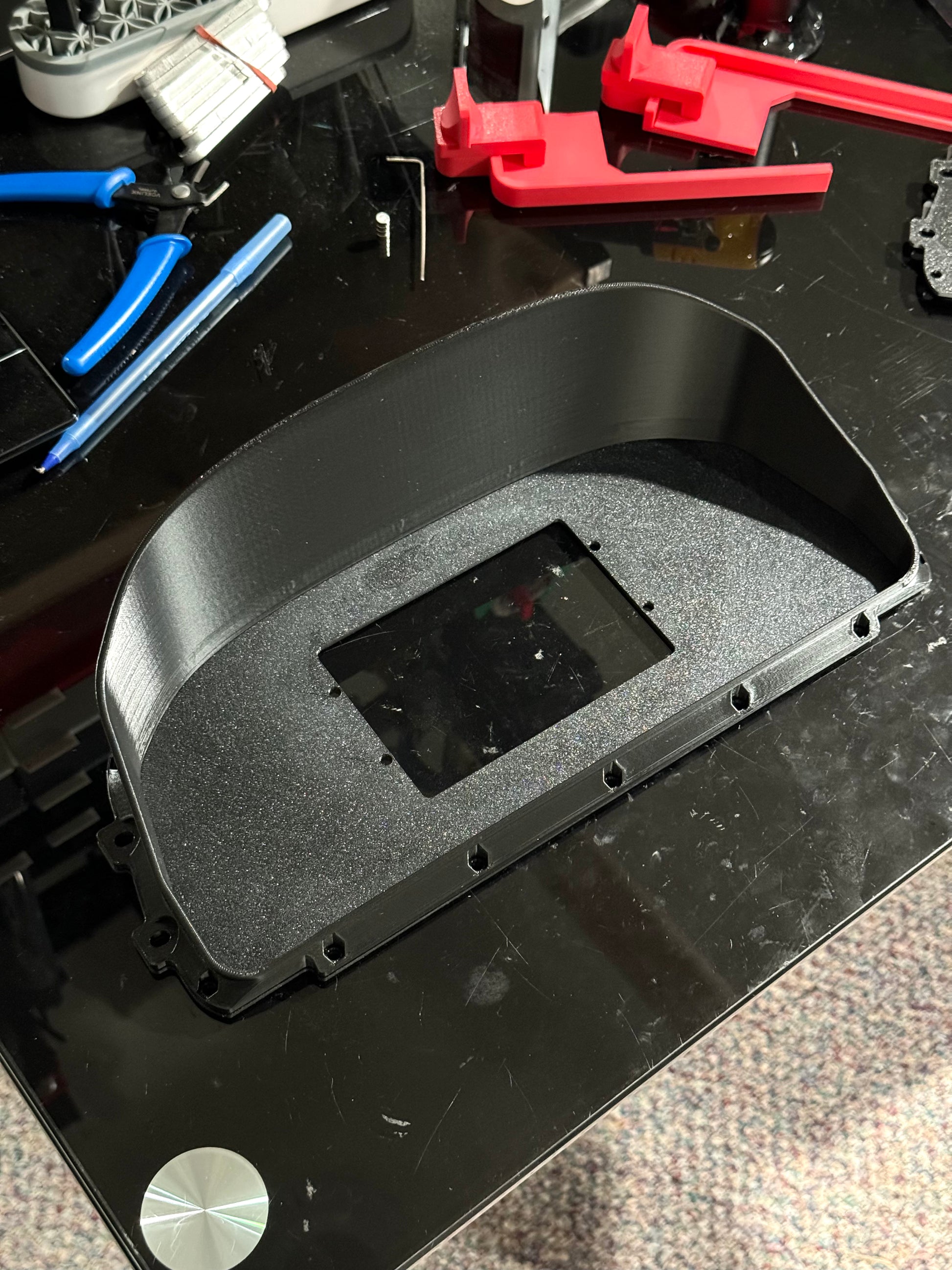

- Cluster housing (black ABS)

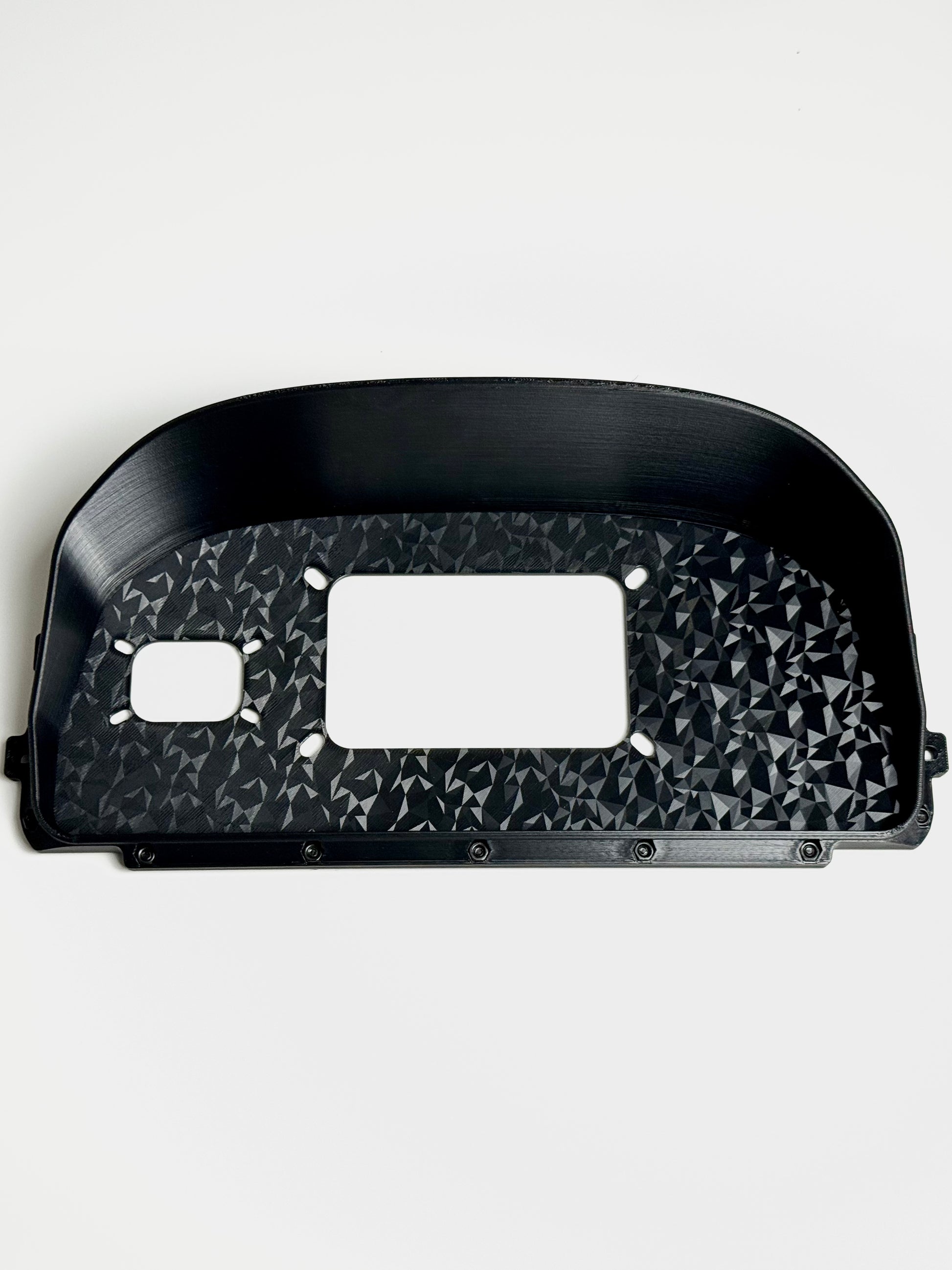

- Face / Mount plate of choice

- Set (of 12) M4 nuts with M4X8 screws

 FUEL TECH

- FITS FT450, FT550, OR FT600

 OPTIONAL NANO

- PRO OR WB-02

 HALTECH IC7

- FOR IC7 DISPLAY ONLY

- INCLUDES 4MM SPACER

- M4X12 HARDWARE FOR SPACER

 TINKER ELECTRONICS

- FOR 5IN OR 7IN DISPLAY

- INCLUDES 8MM SPACER AND 16MM SCREWS

 POWERTUNE V4/V5

- FOR V4/V5 ONLY

* Cluster mounting hardware to car not included - re use original screws *

** must use original bolts supplied with your display **
