Fits 1994-2001 Acura Integra, and 1990-1993 Honda Accord Clock location
-

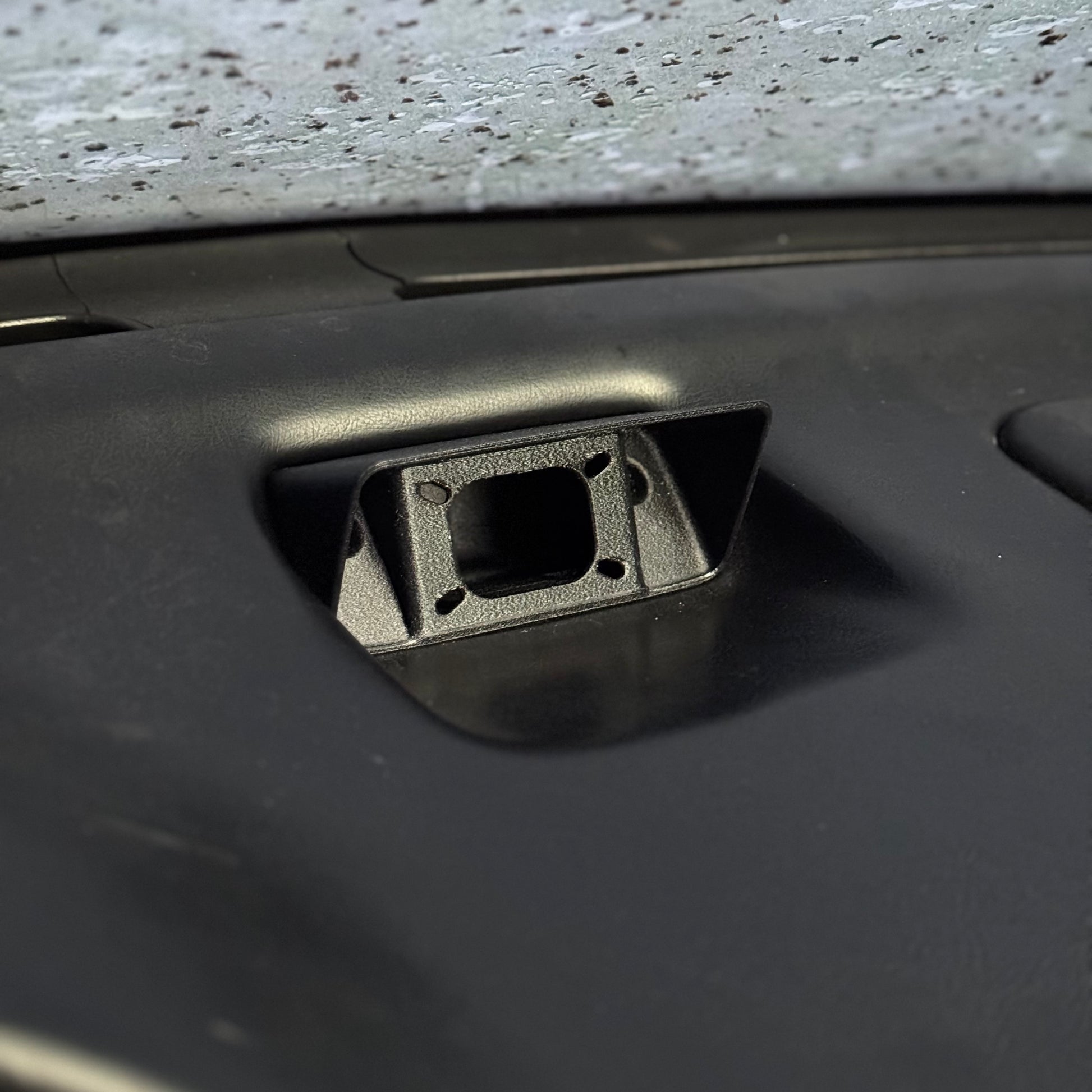

A bolt in delete to replace the clock, with mounting that fits FuelTech Nano PRO/WB02
All options include the arms and 2 screws for mounting
* must re use original bolts for display *
-
Made from ABS plastic, same material as original trim panels
PREMIUM TEXTURED IS ABS + GLASS FIBER
This allows for a nicer finish, improved heat resistance, and stronger part
-
INSTALL
Remove original clock by gently prying around the outside, it is held in by spring clips and has a single plug
Prep the car mount by loosening screws until the mount fingers on the left and right sides bottom out into the nyloc nut, and flip to the up and down positions
The mount can now be installed into the dash, and as the screws on either side are tightened the tabs will flip out to the sides and clamp against the dash. Make sure to loosely tighten both sides first, to ensure the fingers are out and in position to grab the dash. (If you tighten one side completely without the other, the mount will clamp and rotate causing it to only engage on one side. This will cause the un tightened side to pop out and not grab at all)
